Sunroof Assembly: Disassembly

WARNING: This page is about a different car, the 2015 Subaru Outback and 2015 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

Remove the bolt, and then remove the motor assembly - sunroof.

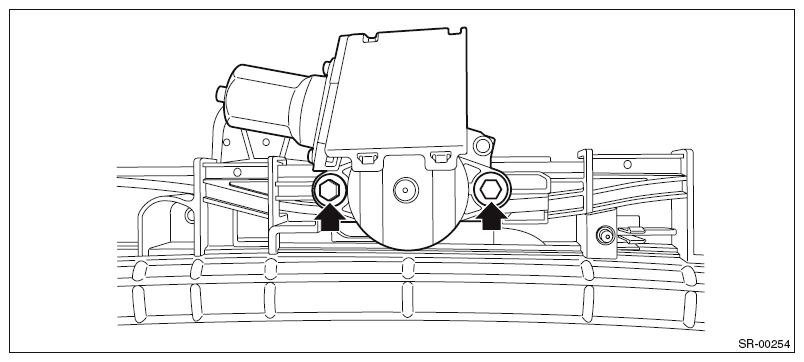

Fig 1: Locating Motor Assembly - Sunroof Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove the screws and release the claws, then detach the drain holder.

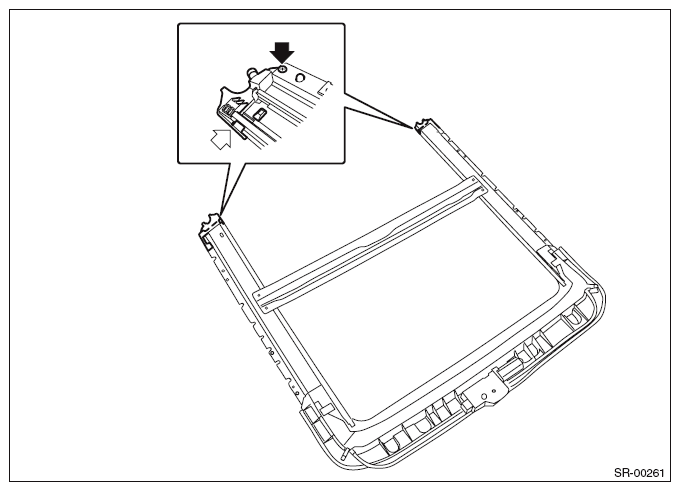

Fig 2: Locating Screws
Courtesy of SUBARU OF AMERICA, INC.
Remove the sunshade assembly together with the cable assembly from the rail assembly - sunroof.

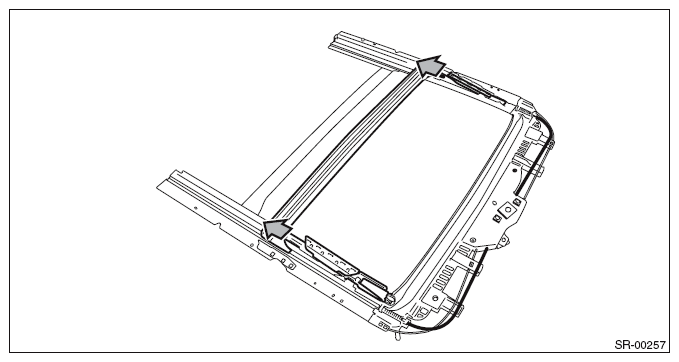

Fig 3: Removing Sunshade Assembly With Cable Assembly From Rail Assembly - Sunroof
Courtesy of SUBARU OF AMERICA, INC.
