Rear Disc Rotor: Installation

WARNING: This page is about a different car, the 2015 Subaru Outback and 2015 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Before installation, remove mud and foreign matter from the disc brake assembly.

Check the rear disc rotor. <Ref. to INSPECTION , Rear Disc Rotor.>
Install the rear disc rotor.

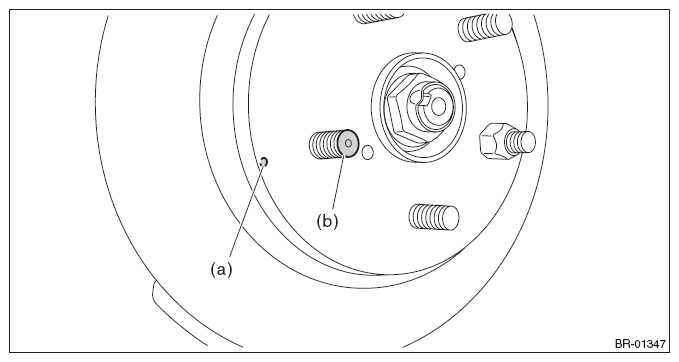

NOTE: When installing the rear disc rotor, match the alignment mark (a) of the rear disc rotor and the alignment mark (b) of the bolt - hub.

Fig 1: Identifying Rear Disc Rotor And Hub Bolt Alignment Marks
Courtesy of SUBARU OF AMERICA, INC.
Install the disc brake assembly.
Tightening torque:

Mounting bolt: 66 N.m (6.7 kgf-m, 48.7 ft-lb)

Brake hose bracket: 33 N.m (3.4 kgf-m, 24.3 ft-lb)
Connect the ground terminal to battery sensor. <Ref. to BATTERY , NOTE, Repair Contents.>
Using the Subaru Select Monitor, exit the brake maintenance mode according to the display screen.
After the operation is completed, apply and release the parking brake five times and ensure that the brake operates normally.
Install the rear wheels.
Tightening torque:

120 N.m (12.2 kgf-m, 88.5 ft-lb)
