Master Cylinder: Disassembly

WARNING: This page is about a different car, the 2015 Subaru Outback and 2015 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the reservoir tank.
    CAUTION: Be careful not to tighten a vise excessively.
    1. Place the master cylinder assembly between aluminum plates and fix it on a vise.
    2. Drive out the pin using a punch and a hammer to remove the reservoir tank.

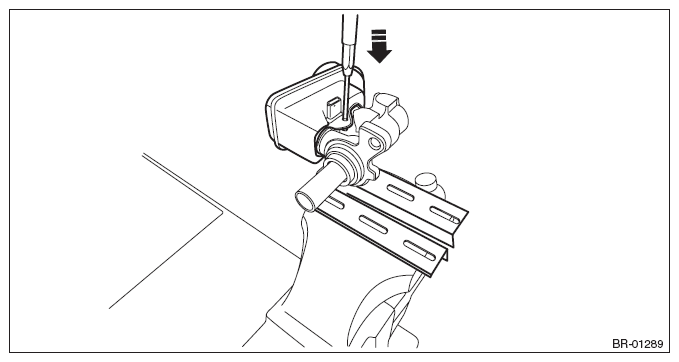

      Fig 1: Releasing Pin Using Punch
      G10270001Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the seal from the cylinder body assembly.
