Front Brake Pipes And Hoses
WARNING: This page is about a different car, the 2015 Subaru Outback and 2015 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

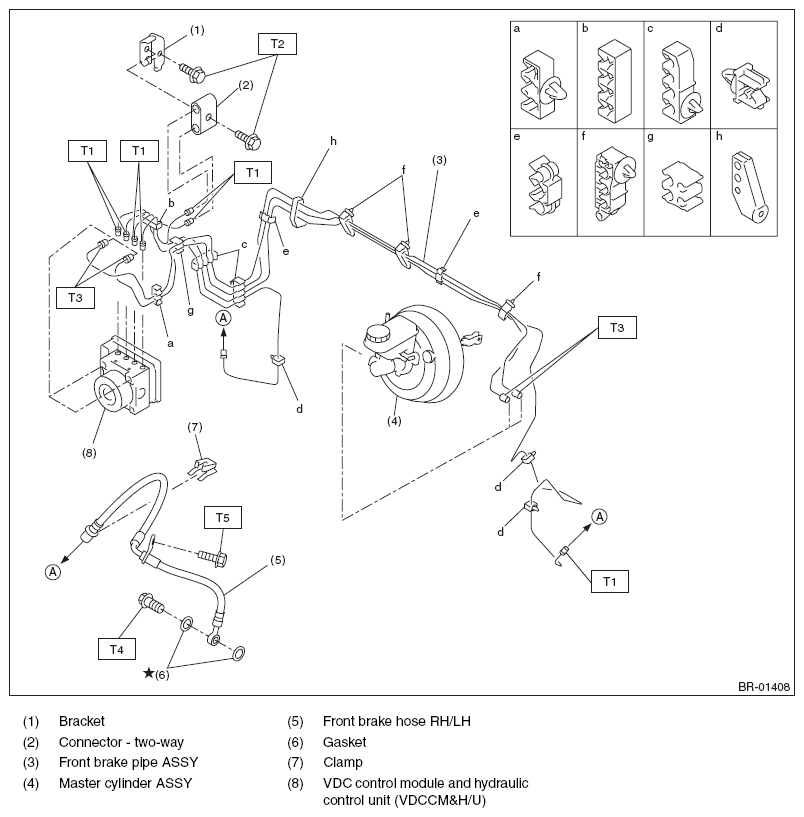

- Models without EyeSight
Courtesy of SUBARU OF AMERICA, INC.
Tightening torque: N.m (kgf-m, ft-lb)
T1: 15 (1.5, 11.1)
T2: 18 (1.8, 13.3)
T3: 19 (1.9, 14.0)
T4: 26 (2.7, 19.2)
T5: 33 (3.4, 24.3)

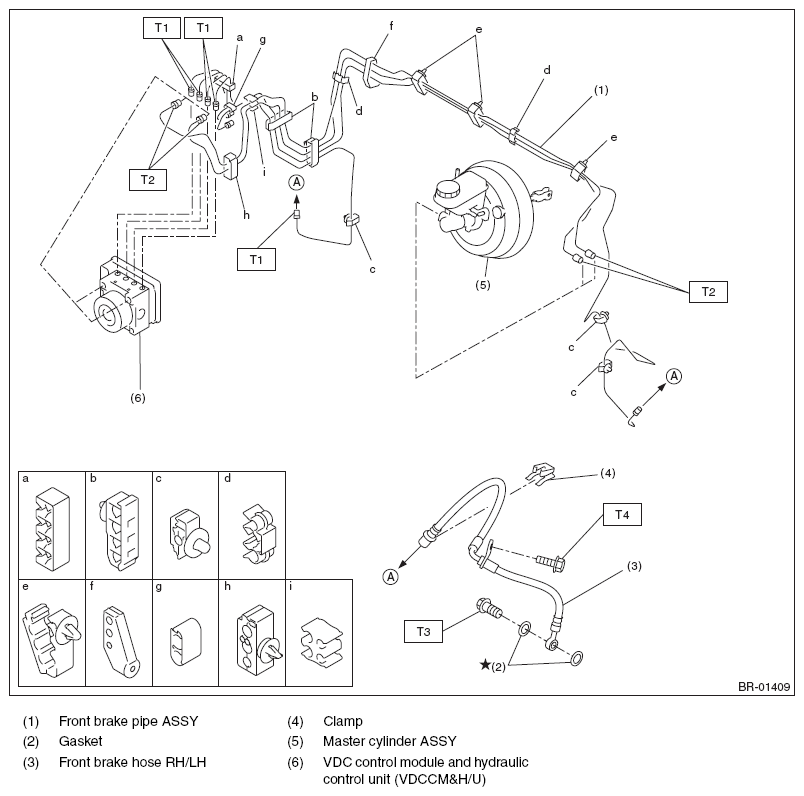

- Models with EyeSight
Courtesy of SUBARU OF AMERICA, INC.
Tightening torque: N.m (kgf-m, ft-lb)
T1: 15 (1.5, 11.1)
T2: 19 (1.9, 14.0)
T3: 26 (2.7, 19.2)
T4: 33 (3.4, 24.3)
