Front Disc Rotor: Removal

WARNING: This page is about a different car, the 2015 Subaru Outback and 2015 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lift up the vehicle, and then remove the front wheels.
  2. Remove the disc brake assembly.
    1. Remove the brake hose bracket.
    2. Remove the mounting bolt, and remove the disc brake assembly.
    3. Prepare wiring harnesses etc. to be discarded, and suspend the disc brake assembly from the strut assembly.

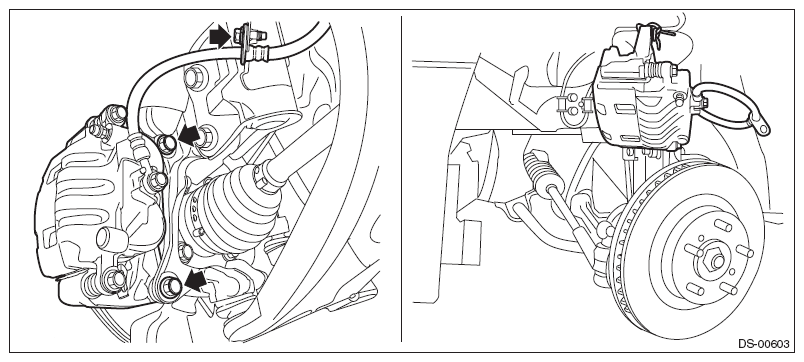

      Fig 1: Locating Disc Brake Assembly Bolts
      G08318662Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the disc rotor.
    NOTE: When the disc rotor is difficult to be removed, screw in 8 mm (0.31 in) bolt to the threaded part of the disc rotor (A), and remove the disc rotor.

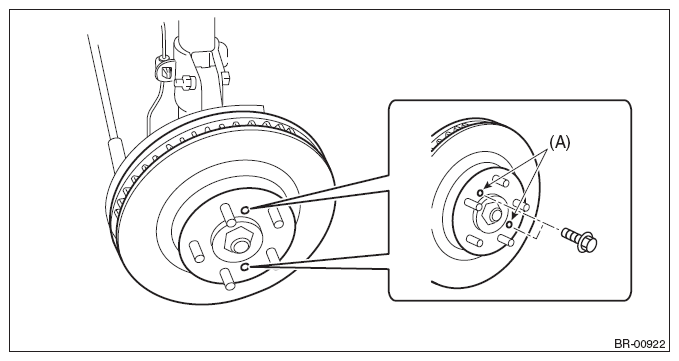

    Fig 2: Identifying Disc Rotor Bolts
    G08314806Courtesy of SUBARU OF AMERICA, INC.
