Rocker Cover

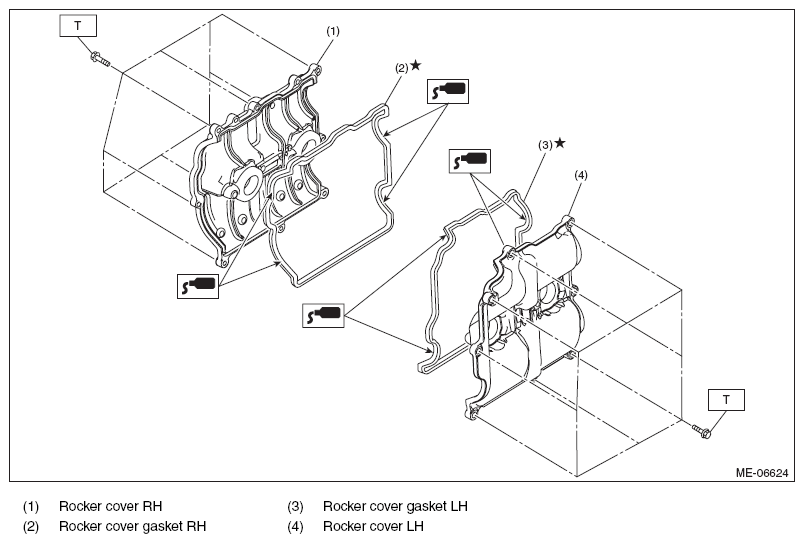

Fig 1: Exploded View Of Rocker Cover
G10266609Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: <Ref. to  INSTALLATION  , Rocker Cover.>
