Engine Mounting

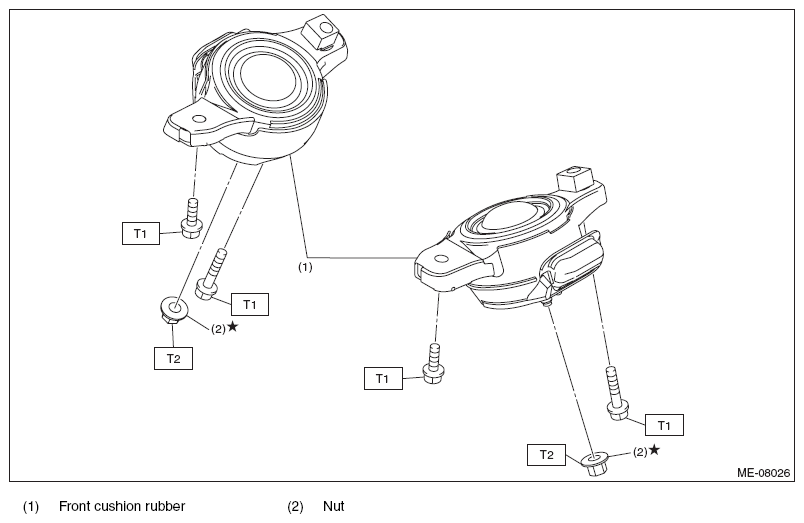

Fig 1: Exploded View Of Engine Mounting With Torque Specifications

G10266616

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 35 (3.6, 25.8)

T2: 60 (6.1, 44.3)
