Front Exhaust Pipe: Assembly

Install the exhaust pipe cover to the front exhaust pipe.
Tightening torque:

T1: 6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

T2: 13 N.m (1.3 kgf-m, 9.6 ft-lb)

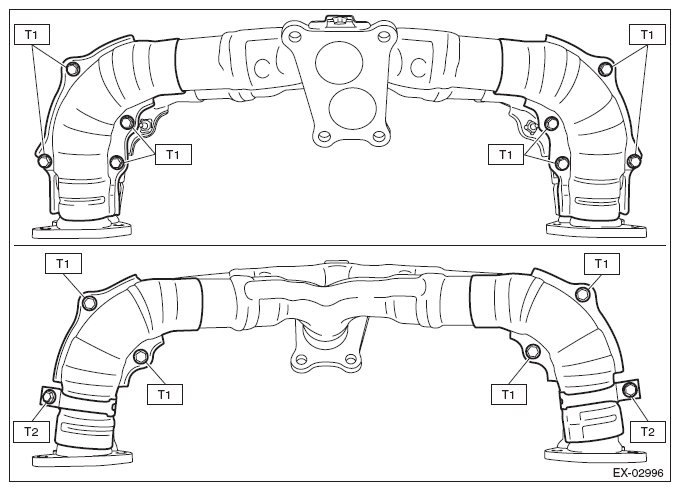

Fig 1: Identifying Exhaust Pipe Cover Bolts With Torque Specification
Courtesy of SUBARU OF AMERICA, INC.
Install the front exhaust pipe together with the turbocharger stay (A) to the turbocharger.
NOTE: Use a new gasket and self-locking nut.

Tightening torque:

42.5 N.m (4.3 kgf-m, 31.3 ft-lb)

Fig 2: Locating Front Exhaust Pipe Self-Locking Nut
Courtesy of SUBARU OF AMERICA, INC.
Install the exhaust pipe cover to the front exhaust pipe.
Tightening torque:

6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

Fig 3: Identifying Exhaust Pipe Cover Bolts With Torque Specification
Courtesy of SUBARU OF AMERICA, INC.
Install the center exhaust pipe (front) together with the turbocharger stay (A) to the turbocharger.
NOTE: Use a new gasket and self-locking nut.

Tightening torque:

42.5 N.m (4.3 kgf-m, 31.3 ft-lb)

Fig 4: Locating Turbocharger Stay Self-Locking Nut
Courtesy of SUBARU OF AMERICA, INC.
Install the exhaust pipe cover to the turbocharger stay.
Tightening torque:

6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

Fig 5: Locating Turbocharger Stay Bolts
Courtesy of SUBARU OF AMERICA, INC.
