Water Pump

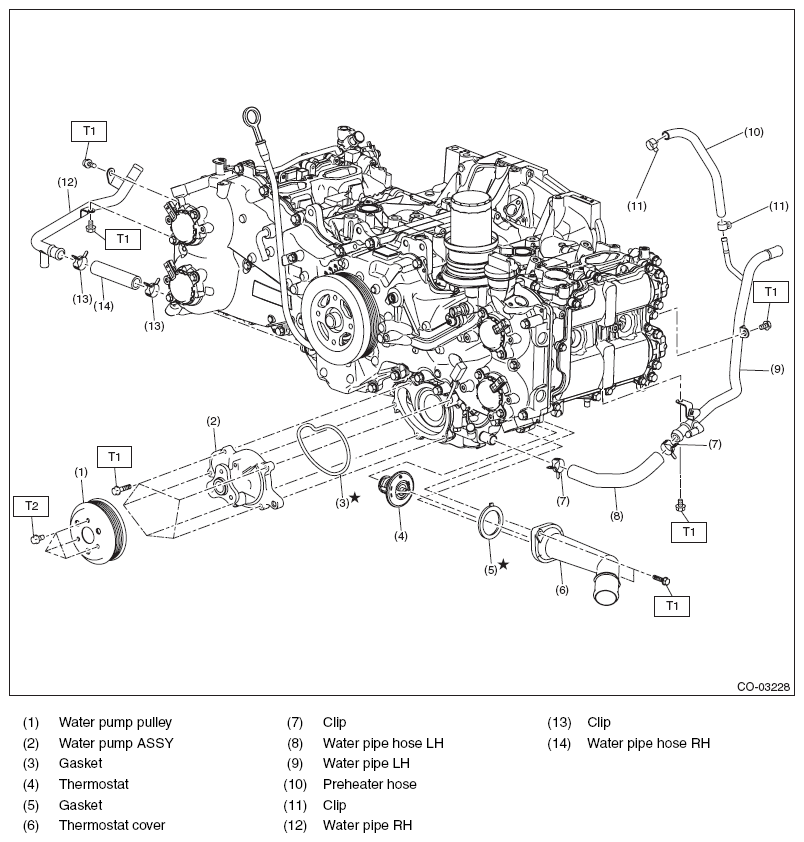

Fig 1: Exploded View Of Water Pump With Torque Specification

G10267196

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6.4 (0.7, 4.7)

T2: 14 (1.4, 10.3)
