VDC OFF Switch: Removal

  1. Disconnect the ground cable from battery and wait for at least 60 seconds before starting work. <Ref. to BATTERY , NOTE, Note.>
    NOTE: For models other than STI model, disconnect the ground terminal from battery sensor.
  2. Remove the cover assembly - instrument panel LWR driver OUT. <Ref. to REMOVAL , Instrument Panel Lower Cover.>
  3. Release the claws and remove the VDC OFF switch.

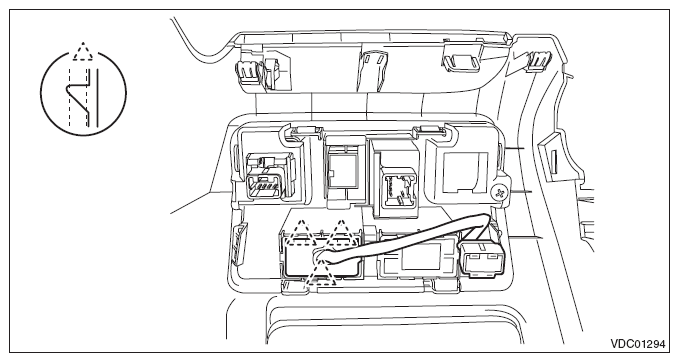

    Fig 1: Identifying VDC Off Switch Claws
    G10269904Courtesy of SUBARU OF AMERICA, INC.
