Relay and Fuse: Location

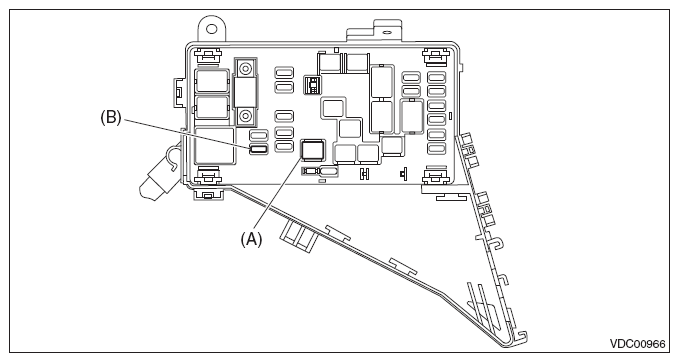

Fig 1: Relay And Fuse Location
G08314719Courtesy of SUBARU OF AMERICA, INC.
Main fuse box Fuse 40A (VDC CM & H/U) (A)
Fuse 30A (VDC CM & H/U) (B)
NOTE: For other related fuses, refer to the wiring diagram. <Ref. to POWER DISTRIBUTION , Power Supply Circuit.>
