Switch Assembly

Measure the resistance between the switch assembly - hand brake and chassis ground.

Preparation tool:

Circuit tester

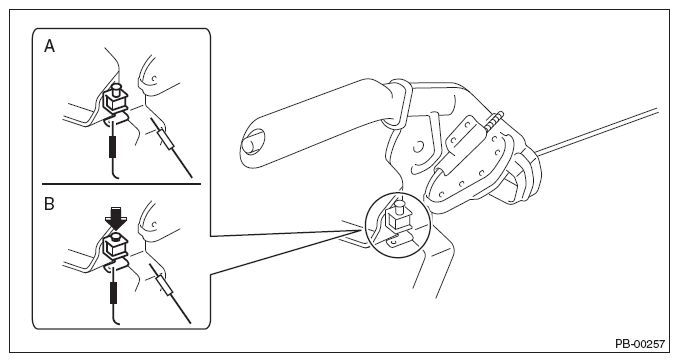

Fig 1: Measuring Resistance Between Switch Assembly - Hand Brake And Chassis Ground

Courtesy of SUBARU OF AMERICA, INC.

	Switch position	Standard
A	When shaft is free (ON)	Less than 1 Ω
B	When shaft is pressed in (OFF)	10 kΩ or more

If the result of inspection is not within the specified value, replace the switch assembly - hand brake.
