Except For STI Model

  1. Lift up the vehicle, and then remove the rear wheels.
  2. Remove the union bolt and the caliper bolt, and remove the caliper body assembly.
    CAUTION:
    • Do not allow brake fluid to come in contact with the painted surface of the vehicle body. If it does, wash off with water and wipe away completely.
    • Prepare a container to catch grease or oil, etc. If any grease or oil spills, wipe it off and clean immediately to prevent from penetrating into floor or flowing outside.
    Fig 1: Locating Front Disc Brake Assembly Union Bolt
    G10269985Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the support - rear disc brake.
    1. Remove the pad - disc brake rear.
    2. Remove the mounting bolts, and then remove the support - rear disc brake.

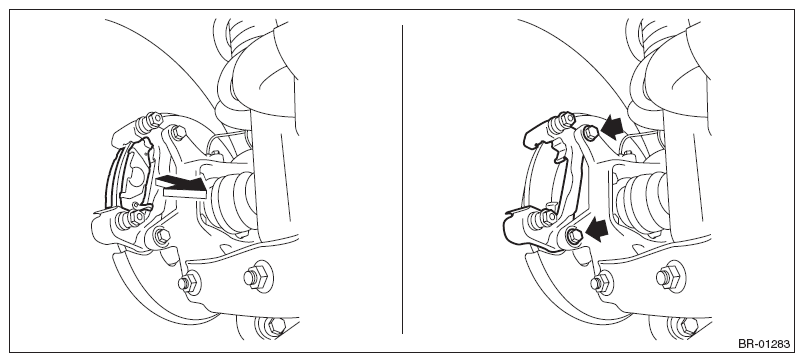

      Fig 2: Removing Support - Rear Disc Brake
      G10269986Courtesy of SUBARU OF AMERICA, INC.
