Except For STI Model
- Check each part. <Ref. to INSPECTION , Rear Disc Brake Assembly.>
- Apply a thin coat of grease to the support - rear disc brake.
Grease:
An item contained in the pad kit, Molykote M7439 or equivalent
- Install the support - rear disc brake to the housing assembly - rear axle.
Tightening torque:
66 N.m (6.7 kgf-m, 48.7 ft-lb)

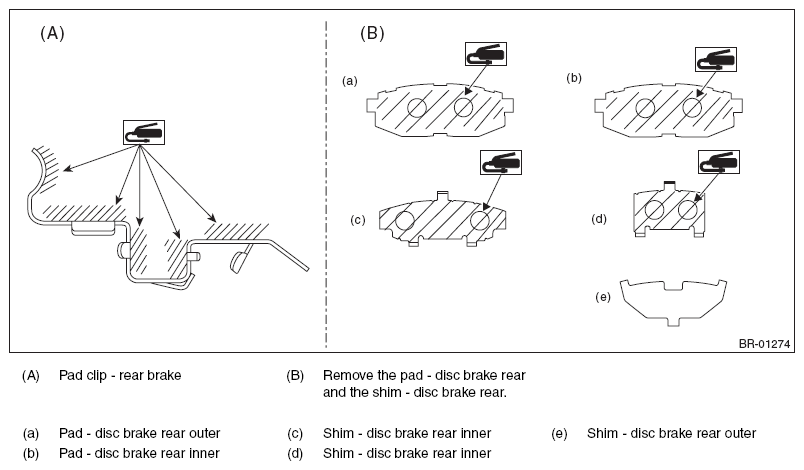

- Apply a thin coat of grease to the pad clip, both sides of the shim - disc brake rear inner and the shim mounting surface of the pad - disc brake rear.
Grease:
Pad clip (A): An item contained in the pad kit, Molykote M7439 or equivalent
Shim and pad (B): An item contained in the pad kit or Molykote AS880N
- Install the pad clip.
- Press back the piston with a disc brake piston tool as needed.CAUTION: When pressing back the piston, the clearance between pad and disc rotor becomes large, which makes the brake pedal effort softer.
After the installation of rear wheel, be sure to perform the adjustment of the clearance and the pedal effort by depressing the brake pedal several times. - Install the pad - disc brake rear.NOTE: Install the pad indicator in proper direction.
- Install the caliper body assembly.
Tightening torque:
27 N.m (2.8 kgf-m, 19.9 ft-lb)
- Install the brake hose bracket.
Tightening torque:
33 N.m (3.4 kgf-m, 24.3 ft-lb)
- Connect the brake hose using a new brake hose gasket.
Tightening torque:
26 N.m (2.7 kgf-m, 19.2 ft-lb)
- Bleed air from the brake system. <Ref. to BRAKE LINE , PROCEDURE, Air Bleeding.>
- Install the rear wheels.
Tightening torque:
120 N.m (12.2 kgf-m, 88.5 ft-lb)
