Rear Disc Brake

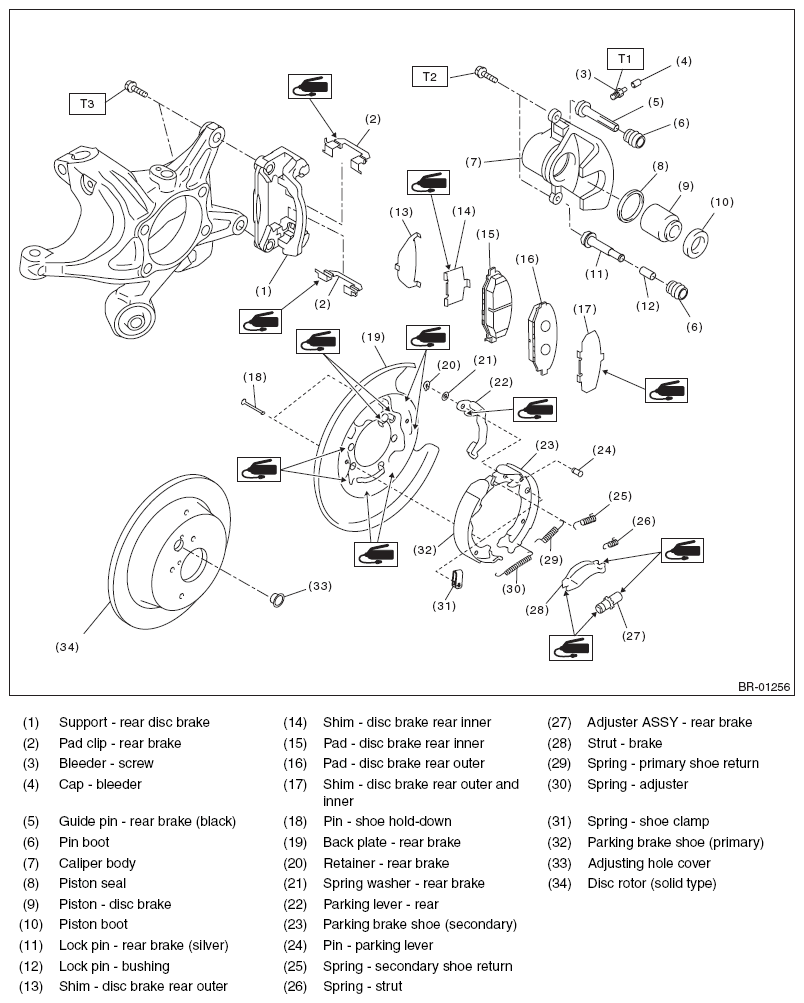

Fig 1: Exploded View Of Rear Disc Brake With Torque Specification - Except For STI Model

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 8 (0.8, 5.9)

T2: 27 (2.8, 19.9)

T3: 66 (6.7, 48.7)

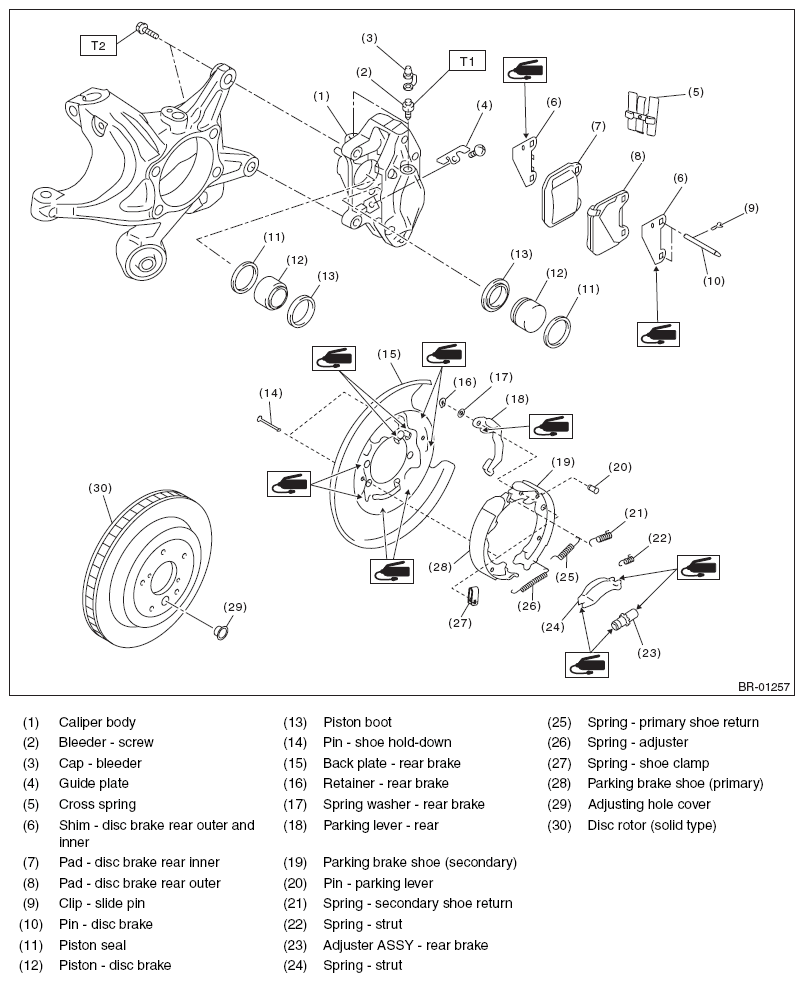

Fig 2: Exploded View Of Rear Disc Brake With Torque Specification - STI Model

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 20 (2.0, 14.8)

T2: 65 (6.6, 47.9)
