Sunroof Switch: Inspection

Measure the resistance between connector terminals.

Preparation tool:

Circuit tester

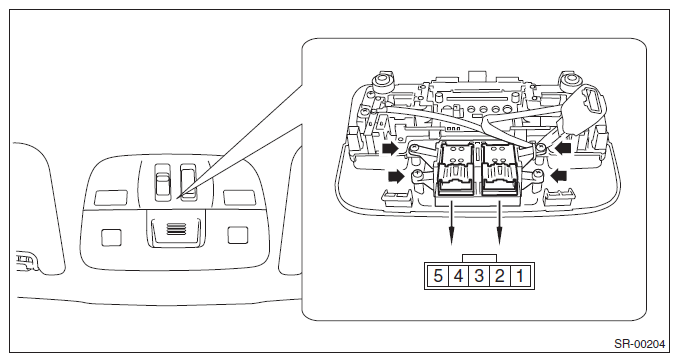

Fig 1: Locating Sunroof Switch Connector Terminal

Courtesy of SUBARU OF AMERICA, INC.

Terminal No.	Inspection conditions	Standard	Connector No.
1 - 3	Open	Less than 1 Ω	R128
4 - 3	Close	Less than 1 Ω	R128
1 - 3	Tilt up	Less than 1 Ω	R187
4 - 3	Tilt down	Less than 1 Ω	R187

Replace the sunroof switch if the inspection result is not within the standard value.
