Glass Lid: Installation: Deflector

  1. Install the deflector assembly - sunroof.
  2. After installation, measure the height from the roof panel when deflector assembly - sunroof is activated.

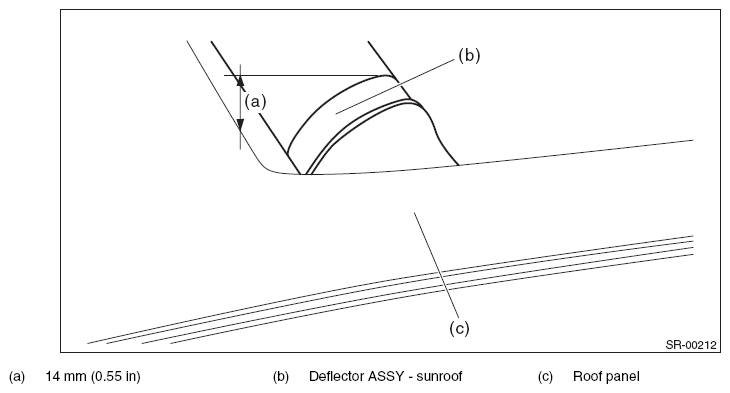

    Fig 1: Identifying Sunroof Deflector Assembly Roof Panel Height
    G10271116Courtesy of SUBARU OF AMERICA, INC.
