Trunk Lid: Installation
- Install the trunk lid arm assembly.
Tightening torque
18 N.m (1.8 kgf-m, 13.3 ft-lb)
- Install the trim panel assembly - rear shelf.
- Install the high-mounted stop light.CAUTION: Make sure that the claw behind the light assembly - high-mounted is securely attached to the trim panel assembly - rear shelf.
- Install the lower anchor of seat belt - rear shoulder CTR.
Tightening torque:
30 N.m (3.1 kgf-m, 22.1 ft-lb)
- Install the trim panel - rear pillar UPR and the trim panel - rear pillar LWR.
- Install the side sill cover - rear INN.
- Install the rear seat cushion assembly.

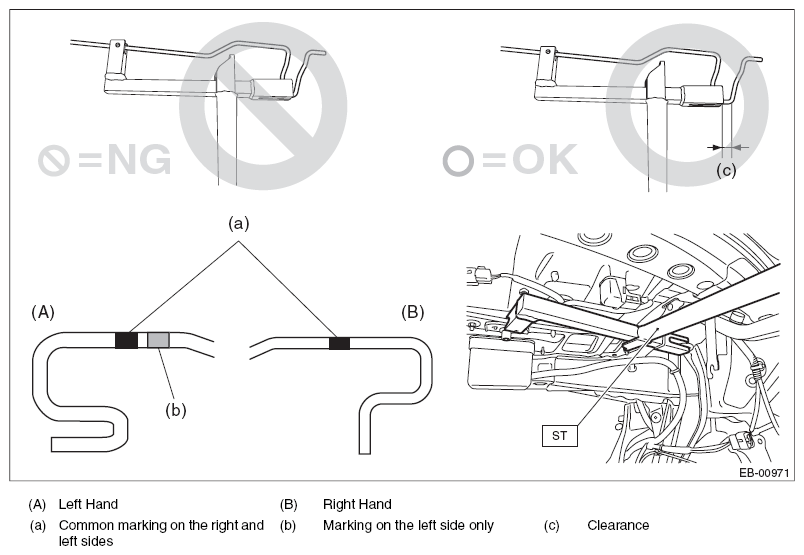

- Install the torsion bar - trunk lid.CAUTION:
- When performing installation, pay close attention to the identification marks and shapes of the torsion bar - trunk lid on the RH and LH sides.
- When installing the remover to the torsion bar - trunk lid, leave a slight clearance (c).
Preparation tool:
ST: REMOVER (99099FJ000)
- Install the trunk lid COMPL.
Tightening torque
14 N.m (1.4 kgf-m, 10.3 ft-lb)
- Install the rear spoiler.
Tightening torque
7.5 N.m (0.8 kgf-m, 5.5 ft-lb)
- Install the garnish - trunk.
Tightening torque
4.5 N.m (0.5 kgf-m, 3.3 ft-lb)
- Install the latch and actuator - trunk lid.
Tightening torque
7.5 N.m (0.8 kgf-m, 5.5 ft-lb)
- Install the trunk lid harness.
- Install the lock assembly - trunk lid.
- Apply grease to the rotating area of hinges.
- Install while paying attention to make a uniform clearance around the trunk lid COMPL. <Ref. to
ADJUSTMENT , Trunk Lid.>
Tightening torque:
Refer to "COMPONENT" of "General Description". <Ref. to TRUNK LID PANEL , COMPONENT, General Description.>
- Connect the battery ground terminal. <Ref. to
BATTERY
, NOTE, Note.>NOTE: For models other than STI model, connect the ground terminal to battery sensor.
