Weather Strip
Weather Strip

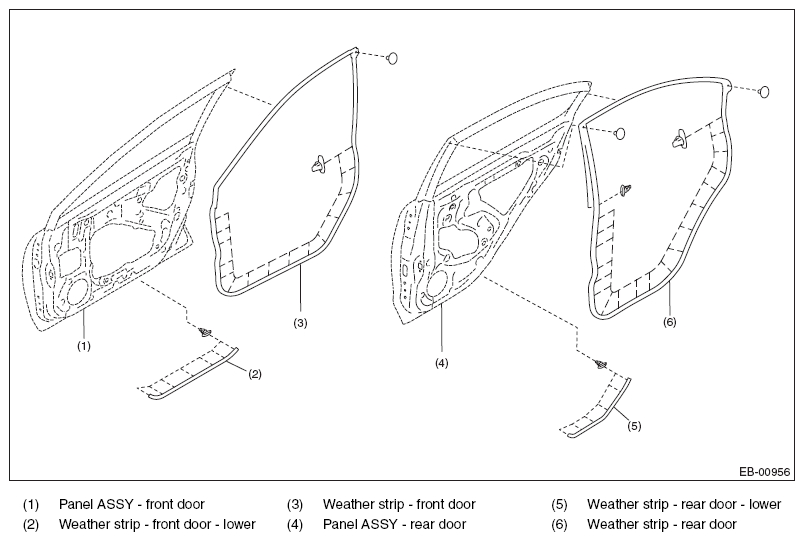

Fig 1: Exploded View Of Weather Strip (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

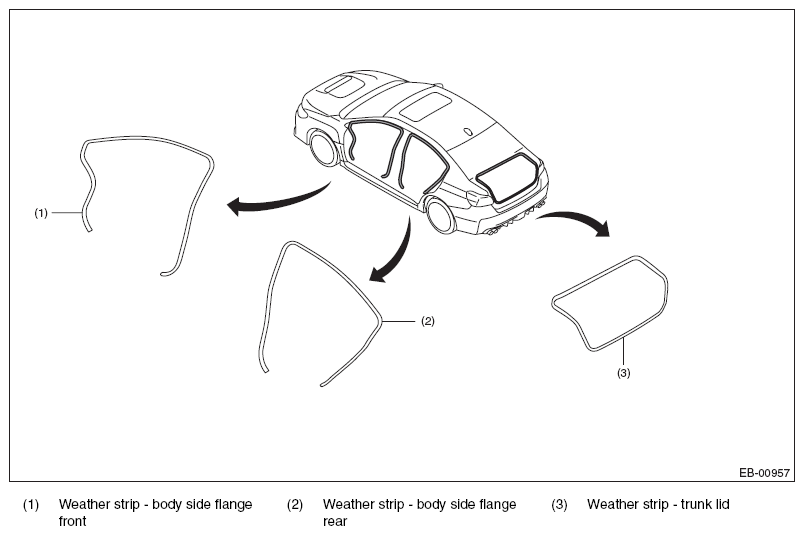

Fig 2: Exploded View Of Weather Strip (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
