Anti-Theft System - Security And Locks: Receiver: Removal

NOTE: Except for model with keyless entry

1. Disconnect the ground cable from battery. <Ref. to BATTERY , NOTE, Note.>
   NOTE: For models other than STI model, disconnect the ground terminal from battery sensor.
2. Remove the trim panel assembly - rear shelf. <Ref. to REMOVAL , Rear Shelf Trim.>
3. Remove the receiver assembly.
   1. Disconnect the connector.
   2. Remove the bolt and remove the receiver assembly.

NOTE: For models with power amplifier, installation position of the receiver assembly is different.

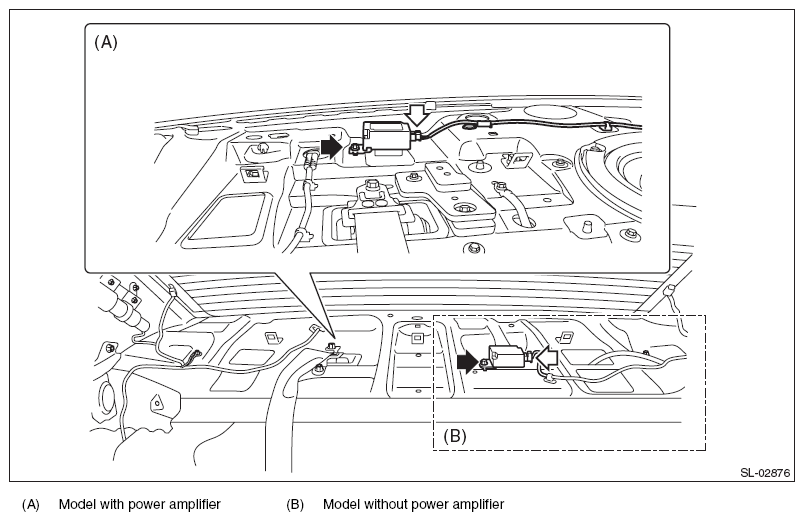

Fig 1: Locating Receiver Assembly Connector

Courtesy of SUBARU OF AMERICA, INC.
