Headlight Assembly: Removal

CAUTION: Do not perform work with wet hands, because there is a possibility of electrical shock.
  1. Disconnect the ground cable from battery. <Ref. to BATTERY , NOTE, Note.>
    NOTE: For models other than STI model, disconnect the ground terminal from battery sensor.
  2. Remove the clips and remove the air intake duct. (When removing the headlight RH)
    • Except for STI model: <Ref. to REMOVAL , Air Intake Duct.>
    • STI model: <Ref. to REMOVAL , Air Intake Duct.>
  3. Remove the bumper face - front. <Ref. to REMOVAL , Front Bumper.>
  4. Remove the bolts and clips, and remove the bracket - front bumper corner.

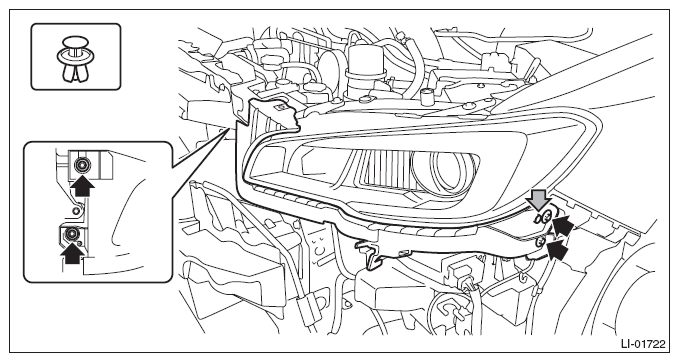

    Fig 1: Locating Bracket Bolts - Front Bumper Corner
    G10270683Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the light assembly - head.
    1. Disconnect the connector.
    2. Remove the bolts and clips, and remove the light assembly - head.

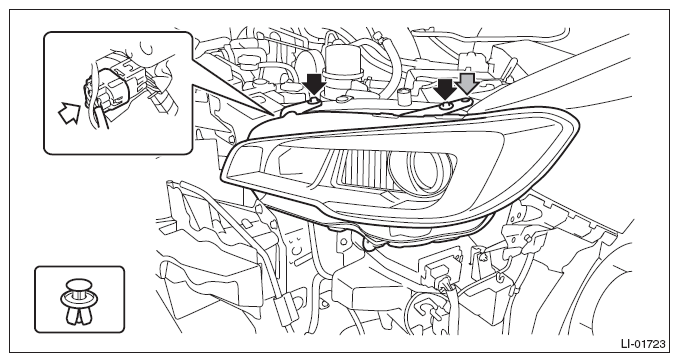

      Fig 2: Locating Light Assembly Bolts And Clips - Head
      G10270684Courtesy of SUBARU OF AMERICA, INC.
