Hazard Switch: Removal

  1. Disconnect the ground cable from battery. <Ref. to BATTERY , NOTE, Note.>
    NOTE: For models other than STI model, disconnect the ground terminal from battery sensor.
  2. Remove the panel center assembly. <Ref. to REMOVAL , Center Console.>
  3. Release the claws, and then remove the switch - hazard.

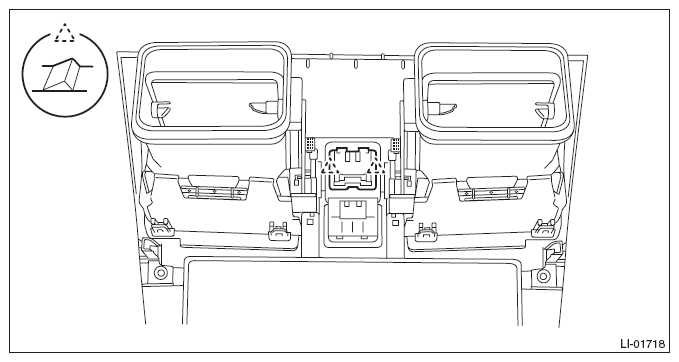

Fig 1: Identifying Hazard Switch Claws
G10270694Courtesy of SUBARU OF AMERICA, INC.
