Front Turn Signal Light Assembly: Removal

Disconnect the ground cable from battery. <Ref. to BATTERY , NOTE, Note.>
NOTE: For models other than STI model, disconnect the ground terminal from battery sensor.
Release the claws, and then remove the cover - fog light.

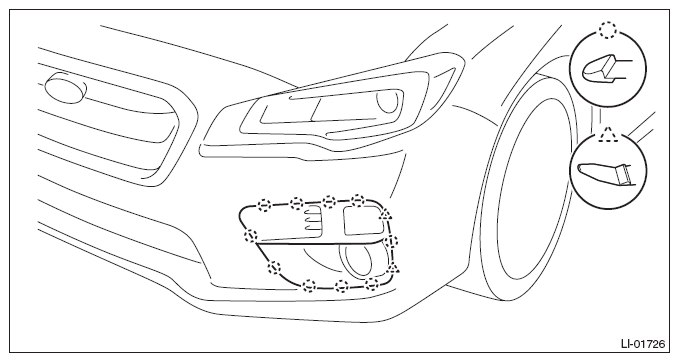

Fig 1: Identifying Front Turn Signal Light Assembly Claws
Courtesy of SUBARU OF AMERICA, INC.

NOTE: If it is hard to remove, push the claw from the back.
Lift up the vehicle.
Remove the screw and clips, and turn over the front side of the mud guard - front.

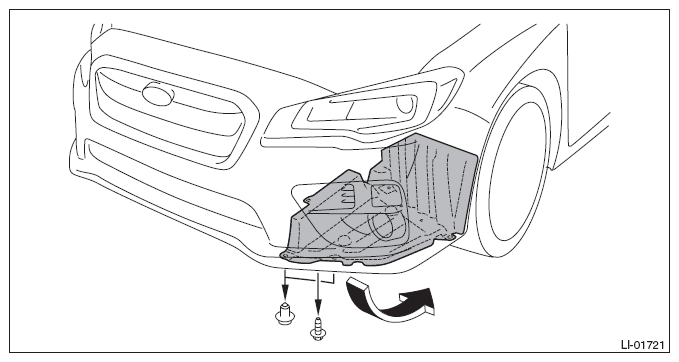

Fig 2: Removing Mud Guard
Courtesy of SUBARU OF AMERICA, INC.
Remove the turn signal light assembly - front.
1. Disconnect the connector.
2. Remove the nuts and remove the turn signal light assembly - front.

  Fig 3: Locating Turn Signal Light Assembly Nuts
  Courtesy of SUBARU OF AMERICA, INC.
