Steering Satellite Switch: Inspection

Measure the resistance between connector terminals.

Preparation tool:

Circuit tester

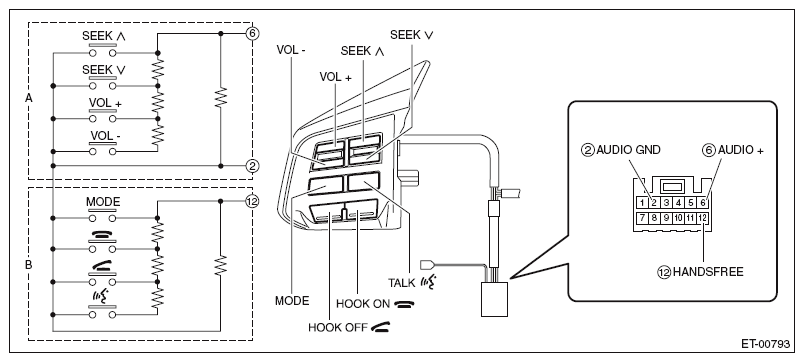

Fig 1: Measuring Resistance Between Satellite Switch Assembly Connector Terminals

G09484390

Courtesy of SUBARU OF AMERICA, INC.

Terminal No.	Inspection conditions		Standard
6 - 2	SEEK (UP) SEEK (DOWN) VOL (+) VOL (-)	A circuit is all OFF.	Approx. 100 kΩ
6 - 2	Preset CH UP/SEEK (UP)	ON	Less than 1 Ω
6 - 2	Preset CH DOWN/SEEK (DOWN)	ON	Approx. 330 Ω
6 - 2	VOL (+)	ON	Approx. 1000 Ω
6 - 2	VOL (-)	ON	Approx. 3110 Ω
12 - 2	MODE HOOK ON HOOK OFF TALK	B circuit is all OFF.	Approx. 100 kΩ
12 - 2	MODE ON	Less	than 1 Ω
12 - 2	HOOK ON	ON	Approx. 330 Ω
12 - 2	HOOK OFF	ON	Approx. 1000 Ω
12 - 2	TALK	ON	Approx. 3110 Ω

If the result of the measurement is not at the standard, replace the satellite switch assembly.
