Entertainment Systems: Audio: Removal

  1. Disconnect the ground cable from battery. <Ref. to BATTERY , NOTE, Note.>
    NOTE: For models other than STI model, disconnect the ground terminal from battery sensor.
  2. Remove the panel center assembly. <Ref. to REMOVAL , Center Console.>
  3. Remove the audio assembly.
    1. Remove the screws, and partially pull out the audio assembly.
    2. Disconnect the connectors, and remove the audio assembly.

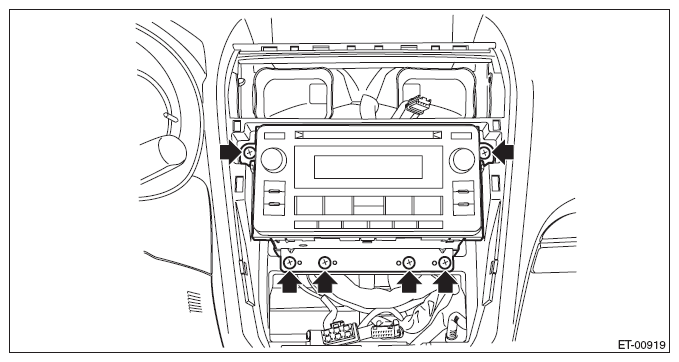

      Fig 1: Locating Audio Assembly Screws
      G10270801Courtesy of SUBARU OF AMERICA, INC.
