Diagnostic Method

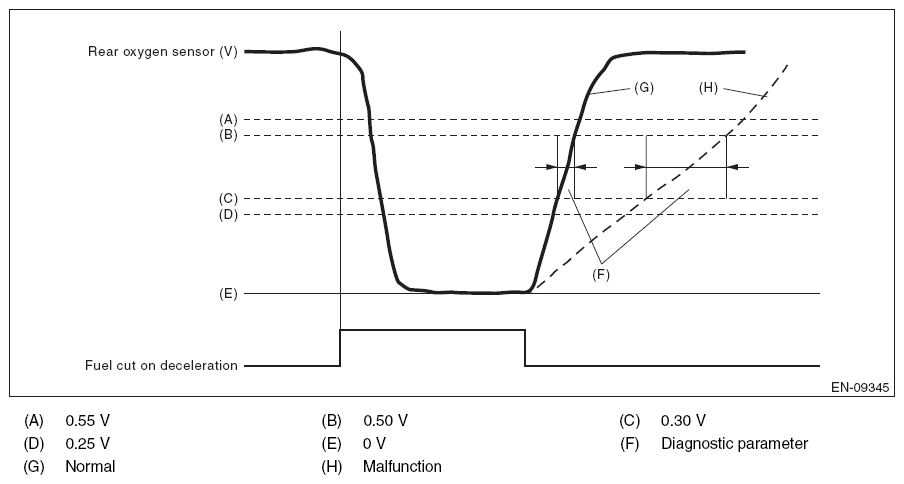

Detect the trouble by calculating the response time of the rear oxygen sensor after fuel cut.
Judge as NG when the following conditions are established.
Judgment Value
JUDGMENT VALUE SPECIFICATION
| Malfunction Criteria | Threshold Value |
|---|---|
| Time when rear oxygen sensor voltage changed from 0.3 V to 0.5 V | > 4000 ms |
Time Needed for Diagnosis: 4 seconds
Malfunction Indicator Light Illumination: Illuminates when malfunction occurs in 2 continuous driving cycles.
