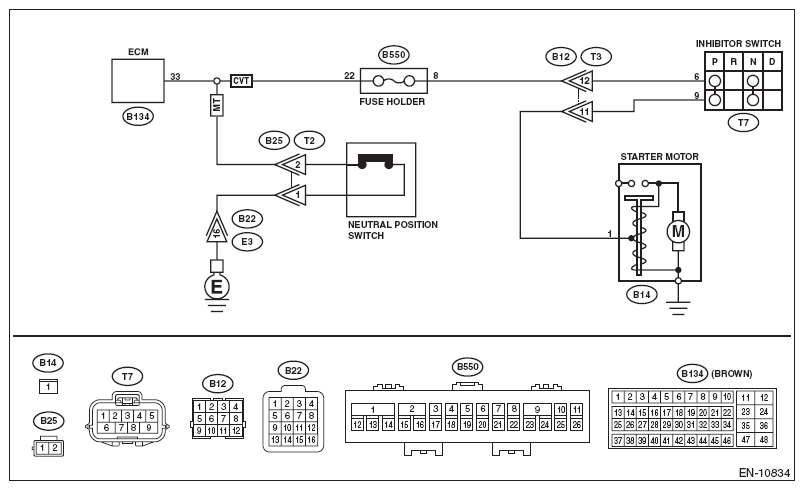

DTC P0852 Neutral Switch Input Circuit High (Mt Model): Wiring Diagram
- Engine Electrical System ENGINE TYPE FA (WITHOUT PUSH BUTTON START) <Ref. to 2.0L TURBO (WITHOUT PUSH BUTTON START), WIRING DIAGRAM, Engine Electrical System.>
- Engine Electrical System ENGINE TYPE FA (WITH PUSH BUTTON START) <Ref. to 2.0L TURBO (WITH PUSH BUTTON START), WIRING DIAGRAM, Engine Electrical System.>
DIAGNOSTIC PROCEDURE
| Step | Check | Yes | No |
|---|---|---|---|
1 CHECK INPUT SIGNAL OF ECM
.
|
Is the voltage less than 1 V? | Repair the poor contact of ECM connector. | Go to step 2 . |
2 CHECK HARNESS BETWEEN ECM AND NEUTRAL POSITION SWITCH CONNECTOR
.
|
Is the resistance less than 1 Ω? | Go to step 3 . | Repair the open circuit in harness between ECM connector and transmission harness connector. |
| 3 CHECK HARNESS BETWEEN NEUTRAL POSITION SWITCH CONNECTOR AND CHASSIS GROUND
. Measure the resistance of harness between neutral position switch connector and chassis ground. Connector & terminal (B25) No. 1 - Chassis ground: |
Is the resistance less than 5 Ω? | Go to step 4 . | Repair the harness and connector.
NOTE:
In this case, repair the following item:
|
4 CHECK NEUTRAL POSITION SWITCH
.
|
Is the resistance less than 1 Ω? | Repair the poor contact of neutral position switch connector. | Replace the neutral position switch. <Ref. to SWITCHES AND HARNESS .> |
