Repair and Diagnosis (Single Page)
>>
Engine Performance
>>
System
>>
Diagnostic Trouble Code (DTC) Detecting Criteria (H4DOTC) (Except STI)
>>
Diagnostic Trouble Code (DTC) Detecting Criteria
>>
DTC P0336 Crankshaft Position Sensor "A" Circuit Range/Performance
>>
Component Description
Component Description

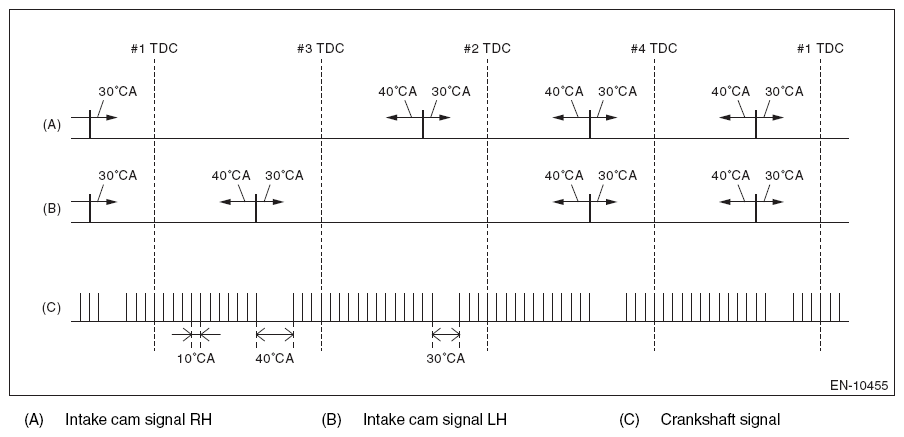

Fig 1: Identifying Cam And Crankshaft Signal Scale
Courtesy of SUBARU OF AMERICA, INC.

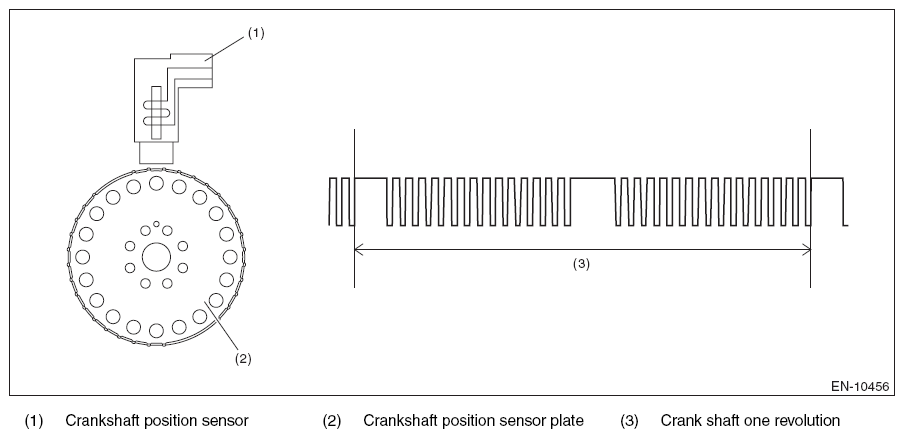

Fig 2: Identifying Crankshaft Position Sensor And Plate
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
