Component Description

Ambient temperature sensor is connected to combination meter. ECM receives the data of ambient temperature sensor via CAN communication with combination meter.

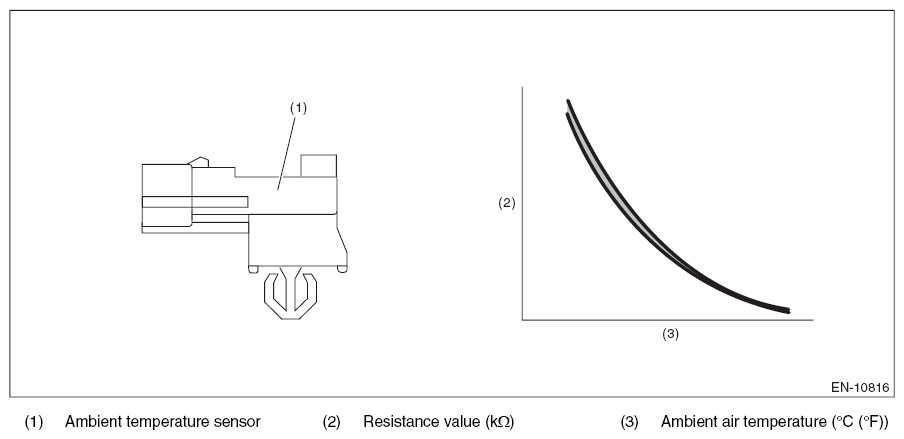

Fig 1: Ambient Air Temperature Resistance Graph - Low
G10267655Courtesy of SUBARU OF AMERICA, INC.
