Exhaust Gas RECIRCULATION Control Circuit Range/Performance

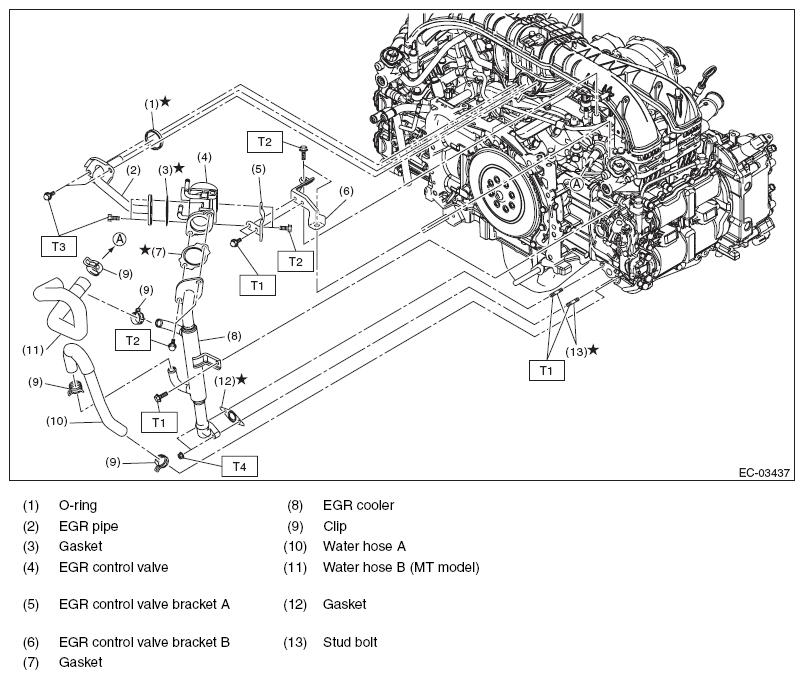

Fig 1: Identifying Exhaust Gas Recirculation Control Related Components With Torque Specification

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6.4 (0.7, 4.7)

T2: 19 (1.9, 14.0)

T3: <Ref. to  INSTALLATION  , EGR Pipe.>

T4: <Ref. to  INSTALLATION  , EGR Cooler.>
