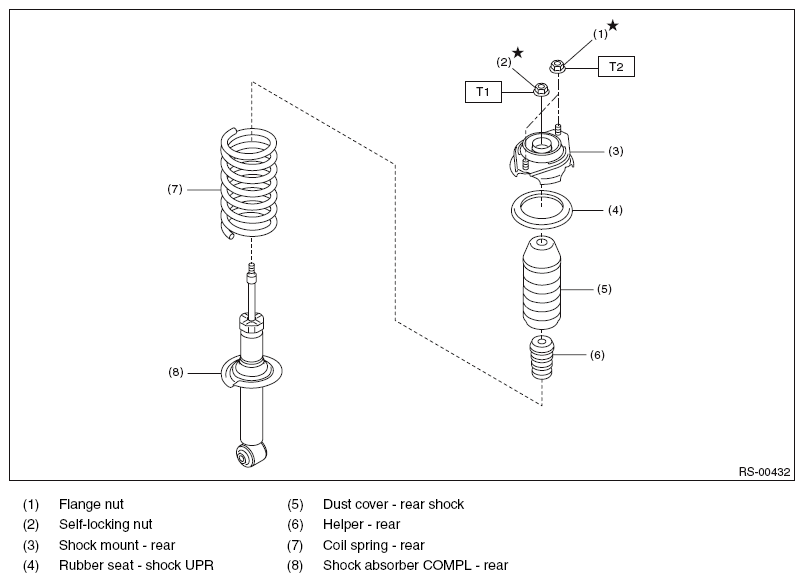

Rear Shock Absorber
 Courtesy of SUBARU OF AMERICA, INC.
|
| (1) |
Flange nut |
| (2) |
Self-locking nut |
| (3) |
Shock mount - rear |
| (4) |
Rubber seat - shock UPR |
| (5) |
Dust cover - rear shock |
| (6) |
Helper - rear |
| (7) |
Coil spring - rear |
| (8) |
Shock absorber COMPL - rear |
Tightening torque: N.m (kgf-m, ft-lb)
T1: 25 (2.5, 18.4)
T2: 30 (3.1, 22.1)
