Generator Bracket

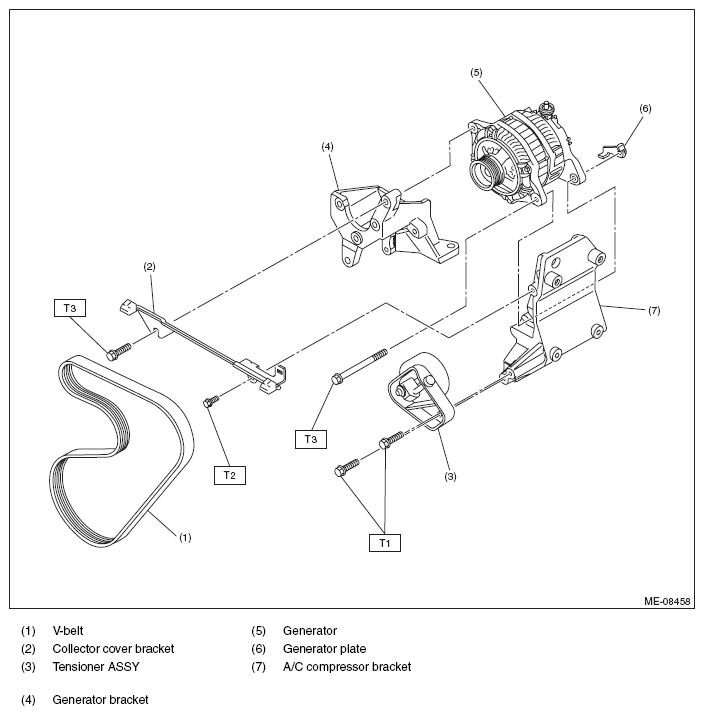

Fig 1: Exploded View Of Generator Bracket With Torque Specification

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 20 (2.0, 14.8)

T2: <Ref. to  INSTALLATION  , Generator.>

T3: <Ref. to  INSTALLATION  , Generator.>
