Vehicle Dynamics Control (VDC) System (Diagnostics): Electrical Component Location: Location

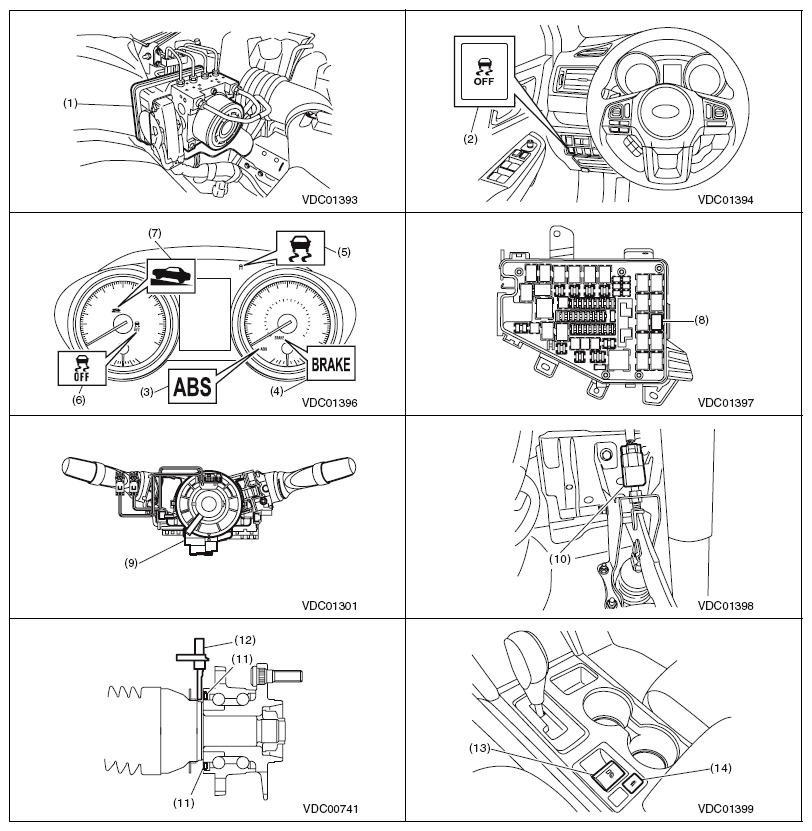

Fig 1: Identifying Vehicle Electrical Components (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

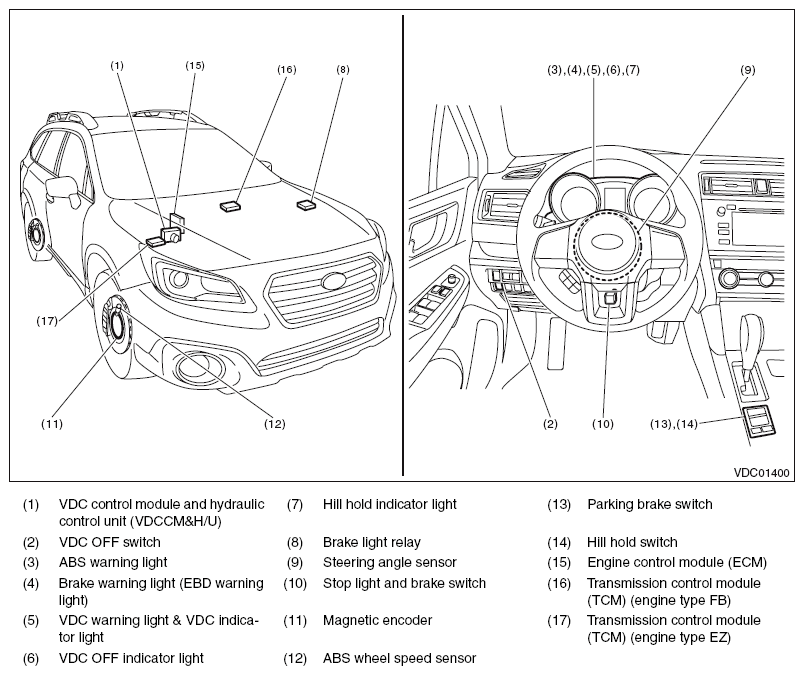

Fig 2: Identifying Vehicle Electrical Components (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.
