Inhibitor Switch: Installation

  1. Install the inhibitor switch to the transmission case temporarily.
    Fig 1: Identifying Inhibitor Switch
    G10218584Courtesy of SUBARU OF AMERICA, INC.
  2. Connect the inhibitor harness connector.
  3. Install the shifter arm and fix with the spring pin.
    NOTE: Use new spring pin.

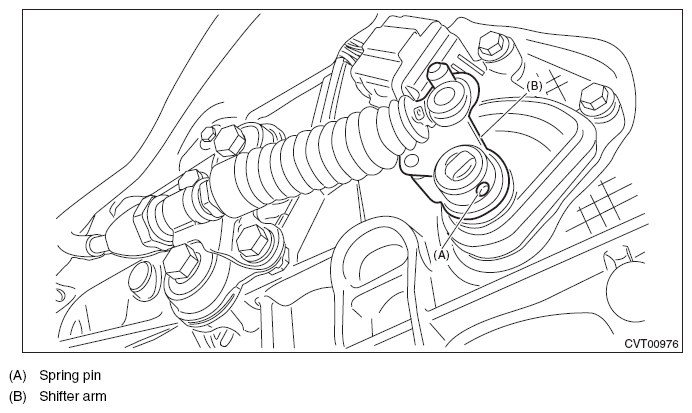

    Fig 2: Identifying Spring Pin And Shifter Arm
    G10274985Courtesy of SUBARU OF AMERICA, INC.
  4. Shift the shifter arm to "N" range.
  5. Install the ST vertically in the cutout of shifter arm and the hole of switch body.

    ST 499267300 STOPPER PIN

    Fig 3: Inserting Stopper Pin (ST 499267300) Into Shifter Arm And Switch Body Holes
    G10218581Courtesy of SUBARU OF AMERICA, INC.
  6. Tighten the two bolts holding the inhibitor switch.

    Tightening torque:

    5 N.m (0.5 kgf-m, 3.7 ft-lb)

  7. Install the select cable to the shifter arm.
  8. Install the washer and snap pin.

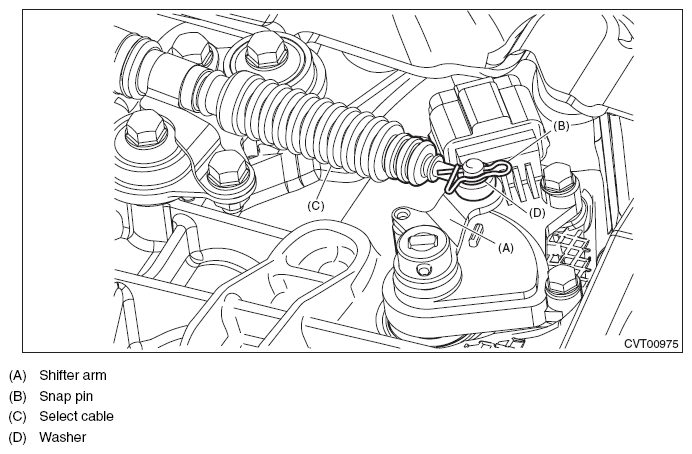

    Fig 4: Identifying Washer And Snap Pin
    G10274987Courtesy of SUBARU OF AMERICA, INC.
  9. Install the center exhaust pipe. <Ref. to INSTALLATION , Center Exhaust Pipe.>
  10. Lower the vehicle.
  11. Connect the ground terminal to battery sensor. <Ref. to BATTERY , NOTE, Repair Contents.>
  12. Check the inhibitor switch. <Ref. to INSPECTION , Inhibitor Switch.>
