Example Of DTC Data Not Received

WARNING: This page is about a different car, the 2016 Subaru Outback and 2016 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: DTC - Network Diagram (No-Receive Data)

Courtesy of SUBARU OF AMERICA, INC.

Vicinity of No. 18 steering angle sensor

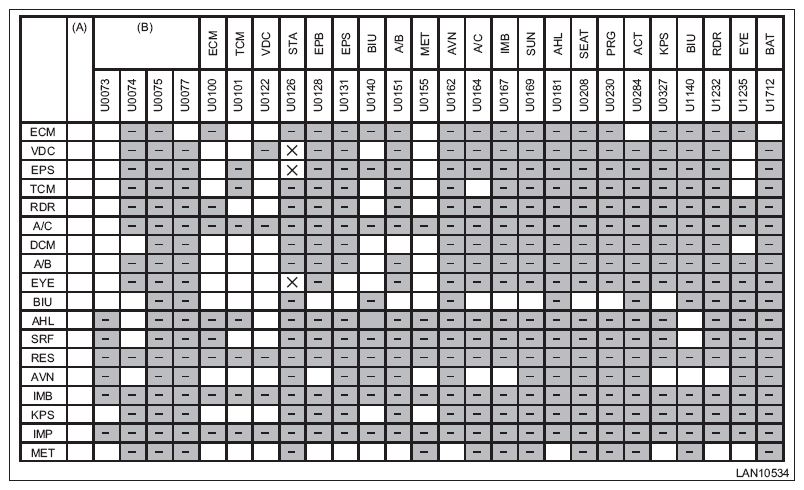

Fig 2: DTC Check Sheet - Vicinity Of No. 18 Steering Angle Sensor
Courtesy of SUBARU OF AMERICA, INC.
Vicinity of No. 24 DCM (BODY CAN)

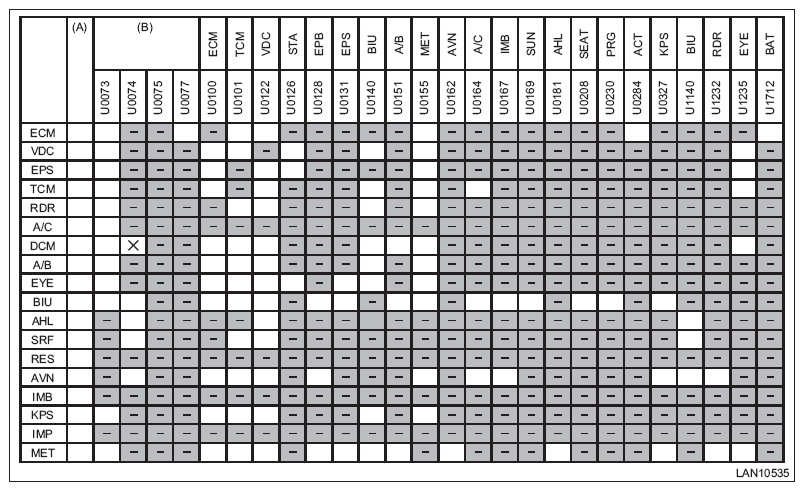

Fig 3: DTC Check Sheet - Vicinity Of No. 24 DCM (Body CAN)
Courtesy of SUBARU OF AMERICA, INC.
