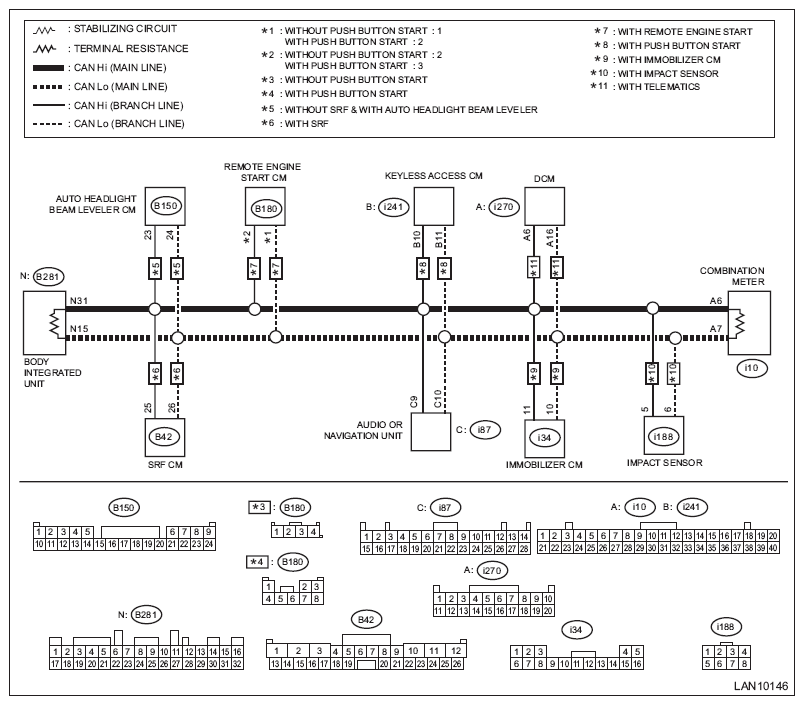

CAN Communication Circuit Check: Procedure: Wiring Diagram

WARNING: This page is about a different car, the 2016 Subaru Outback and 2016 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
DIAGNOSTICS PROCEDURE

Step Check Yes No
1 CHECK BASIC DIAGNOSTIC PROCEDURE.
Check that the basic diagnosis has been performed up to STEP 3.
NOTE: Possible defective parts can be narrowed easily by inspection using Subaru Select Monitor before performing "CHECK CAN COMMUNICATION CIRCUIT" using a tester.
Was the basic diagnostic procedure performed? Go to step 2  . Perform the basic diagnostic procedure. < Ref. to PROCEDURE , Basic Diagnostic Procedure. >
2 CHECK FROM DATA LINK CONNECTOR.
Using the tester, measure the resistance between terminals.
Connector & terminal
(B40) No. 6 - Chassis ground:
(B40) No. 14 - Chassis ground:
Is the resistance 10 Ω or less? Check for ground short. < Ref. to GROUND SHORT INSPECTION , INSPECTION, CAN Communication Circuit Check. > Go to step 3  .
3 CHECK FROM DATA LINK CONNECTOR.
  1. Turn the ignition switch to ON.
  2. Using the tester, measure the voltage between terminals.

    Connector & terminal

    (B40) No. 6 - Chassis ground:

    (B40) No. 14 - Chassis ground:

Is the voltage 5 V or less? Go to step 4  . Check for battery short. < Ref. to BATTERY SHORT INSPECTION , INSPECTION, CAN Communication Circuit Check. >
4 CHECK FROM DATA LINK CONNECTOR.
  1. Turn the ignition switch to OFF.
  2. Using the tester, measure the resistance between terminals.

    Connector & terminal

    (B40) No. 6 - (B40) No. 14:

Is the resistance 52 Ω or less? Perform the inspection for resistance of 52 Ω or less. < Ref. to 52 Ω OR LESS , INSPECTION, CAN Communication Circuit Check. > Go to step 5  .
5 CHECK FROM DATA LINK CONNECTOR.
Using the tester, measure the resistance between terminals.
Connector & terminal
(B40) No. 6 - No. 14:
Is the resistance 62 Ω or more? Perform the inspection for resistance of 62 Ω or more. < Ref. to 62 Ω OR MORE , INSPECTION, CAN Communication Circuit Check. > If the display of CAN system U-code disappears from the current malfunction, the CAN network is currently normal. If the U-code has detected as current malfunction, related lines may be open. Perform the inspection for the related line corresponding to the detected DTC. < Ref. to LIST , CAN Communication Circuit Check. >


DIAGNOSTICS PROCEDURE

Step Check Yes No
1 CHECK BASIC DIAGNOSTIC PROCEDURE.
Check that the basic diagnosis has been performed up to STEP 3.
NOTE: Possible defective parts can be narrowed easily by inspection using Subaru Select Monitor before performing "CHECK CAN COMMUNICATION CIRCUIT" using a tester.
Was the basic diagnostic procedure performed? Go to step 2  . Perform the basic diagnostic procedure. < Ref. to PROCEDURE , Basic Diagnostic Procedure. >
2 CHECK FROM IMPACT SENSOR CONNECTOR.
Using the tester, measure the resistance between terminals.
Connector & terminal
(i188) No. 5 - Chassis ground:
(i188) No. 6 - Chassis ground:
Is the resistance 10 Ω or less? Check for ground short. < Ref. to GROUND SHORT INSPECTION , INSPECTION, CAN Communication Circuit Check. > Go to step 3  .
3 CHECK FROM IMPACT SENSOR CONNECTOR.
  1. Turn the ignition switch to ON.
  2. Using the tester, measure the voltage between terminals.

    Connector & terminal

    (i188) No. 5 - Chassis ground:

    (i188) No. 6 - Chassis ground:

Is the voltage 5 V or less? Go to step 4  . Check for battery short. < Ref. to BATTERY SHORT INSPECTION , INSPECTION, CAN Communication Circuit Check. >
4 CHECK FROM IMPACT SENSOR CONNECTOR.
  1. Turn the ignition switch to OFF.
  2. Using the tester, measure the resistance between terminals.

    Connector & terminal

    (i188) No. 5 - (i188) No. 6:

Is the resistance 52 Ω or less? Perform the inspection for resistance of 52 Ω or less. < Ref. to 52 Ω OR LESS , INSPECTION, CAN Communication Circuit Check. > Go to step 5  .
5 CHECK FROM IMPACT SENSOR CONNECTOR.
Using the tester, measure the resistance between terminals.
Connector & terminal
(i188) No. 5 - (i188) No. 6:
