Rear Accessory Power Supply Socket: Removal: Console

WARNING: This page is about a different car, the 2016 Subaru Outback and 2016 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. < Ref. to BATTERY , NOTE, Repair Contents. >
Remove the cover assembly - front and the console box assembly. < Ref. to REMOVAL , Console Box. >
While releasing the claw inside, press it in from the rear to remove the socket assembly.

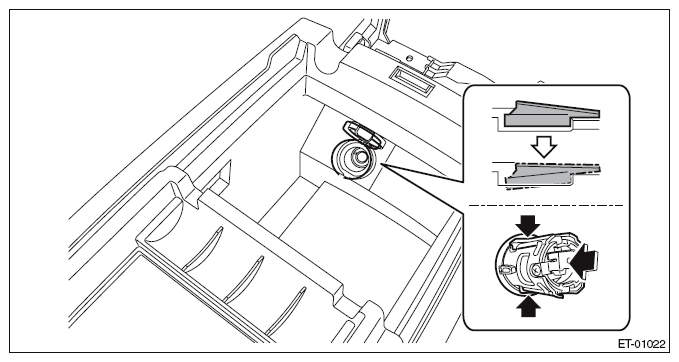

Fig 1: Removing Console Socket Assembly
Courtesy of SUBARU OF AMERICA, INC.
