Sedan Model

WARNING: This page is about a different car, the 2016 Subaru Outback and 2016 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. < Ref. to BATTERY , NOTE, Repair Contents. >
  2. Remove the trim panel - rear pillar UPR. < Ref. to REMOVAL , Rear Quarter Trim. >
  3. Remove the noise suppressor assembly.
    1. Remove the connector and harness clip.
    2. Remove the bolts, then remove the noise suppressor assembly.

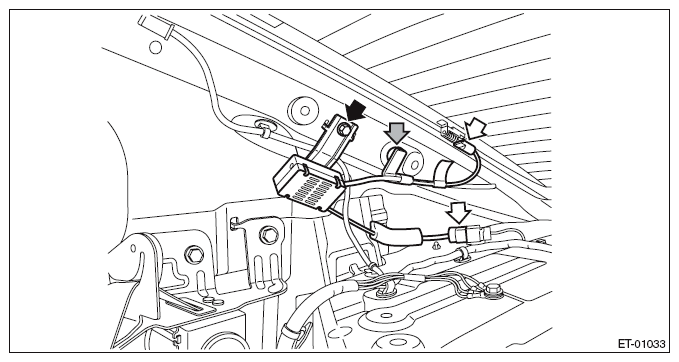

      Fig 1: Locating Noise Suppressor Assembly Connector, Harness Clip And Bolts - Sedan Model
      G10272664Courtesy of SUBARU OF AMERICA, INC.
