Section 20 (Starting System & Charging System (H4DO)): Battery: Installation: Battery

WARNING: This page is about a different car, the 2016 Subaru Outback and 2016 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

Install the battery and battery pan.
Install the battery holder, and install the bolts to the battery box.

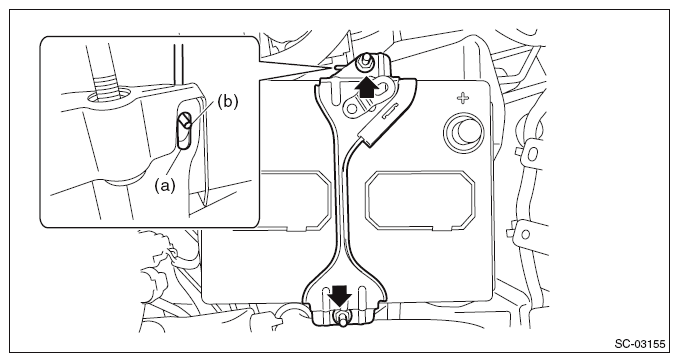

NOTE: Check that the rod (b) of the battery holder is inserted into the hole (a) on the battery box and battery pan.

Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

Fig 1: Identifying Battery Holder Rod And Battery Box Hole
Courtesy of SUBARU OF AMERICA, INC.
Connect the battery positive terminal.
Install the battery sensor. < Ref. to INSTALLATION , Battery Sensor. >
Connect the ground terminal to battery sensor. < Ref. to BATTERY , NOTE, Repair Contents. >
