Water Pump: Installation

WARNING: This page is about a different car, the 2016 Subaru Outback and 2016 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the water pump to the oil pan upper, and tighten the bolts in the numerical order as shown in the figure.
    NOTE: Use a new gasket.

    Tightening torque:

    6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

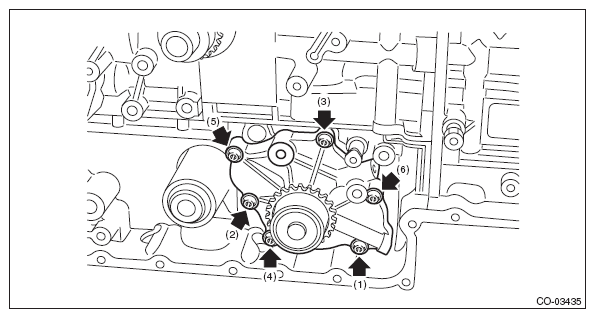

    Fig 1: Locating Water Pump Bolts
    G10264164Courtesy of SUBARU OF AMERICA, INC.
  2. Install the timing chain assembly. < Ref. to INSTALLATION , Timing Chain Assembly. >
  3. Install the chain cover. < Ref. to INSTALLATION , Chain Cover. >
  4. Connect the ground terminal to battery sensor. < Ref. to BATTERY , NOTE, Repair Contents. >
  5. Fill engine coolant. < Ref. to FILLING OF ENGINE COOLANT , REPLACEMENT, Engine Coolant. >
  6. Install the collector cover.
