Outer Mirror Assembly: Disassembly

CAUTION:

When removing the mirror - repair, be careful not to damage the back surface of mirror - repair with a flat tip screwdriver.
When installing the mirror - repair, insert the connector and clip securely.

Operate the remote control mirror switch to face the mirror - repair upward.
Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. <Ref. to BATTERY , NOTE, Repair Contents.>
Remove the mirror - repair.
1. Using a flat tip screwdriver or similar tool, release the engagement shown in the figure, and slide the mirror - repair downward to remove.

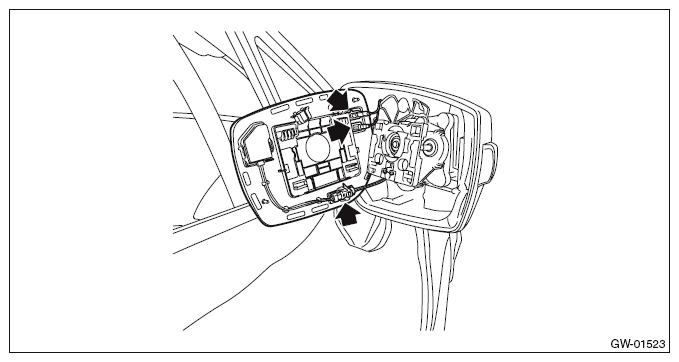

  Fig 1: Removing Mirror - Repair
  Courtesy of SUBARU OF AMERICA, INC.
2. Disconnect the mirror heater connector and the SRVD indicator connector. (Model with mirror heater and SRVD)

  Fig 2: Locating Mirror Heater Connector And SRVD Indicator Connector
  Courtesy of SUBARU OF AMERICA, INC.
Release the claws, and then remove the cover - cap outer mirror lower.

Fig 3: Removing Cover - Cap Outer Mirror Lower
Courtesy of SUBARU OF AMERICA, INC.
Release the claws, and then remove the cover - cap outer mirror.
CAUTION: Be careful not to apply excessive force when removing the cover - cap outer mirror, as the lower hooks may become damaged.

Fig 4: Removing Cover - Cap Outer Mirror
Courtesy of SUBARU OF AMERICA, INC.
Remove the light assembly - side turn mirror. (Model with side turn signal light)
1. Remove the screws and pull out the light assembly - side turn mirror to the front of the vehicle.
2. Disconnect the connector and remove the light assembly - side turn mirror.

  Fig 5: Locating Side Turn Mirror Light Assembly Screws
  Courtesy of SUBARU OF AMERICA, INC.
