Transmission Control Module (TCM): Removal

Disconnect the ground terminal from battery sensor. <Ref. to BATTERY , NOTE, Repair Contents.>
Remove the air intake duct. <Ref. to REMOVAL , Air Intake Duct.>
Remove the clip (A), and loosen the clamps (B) and (C).

Fig 1: Identifying Automatic Transmission Assembly Clip And Clamps
Courtesy of SUBARU OF AMERICA, INC.
Remove the air intake boot from the throttle body, and move it to the left side wheel apron.

Fig 2: Identifying Air Intake Boot
Courtesy of SUBARU OF AMERICA, INC.

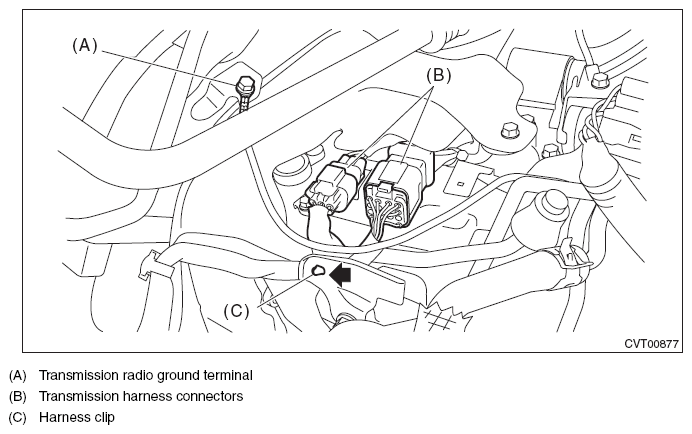

Disconnect the transmission radio ground terminal and transmission harness connector, and remove the harness clip.

Fig 3: Locating Transmission Harness Clip
Courtesy of SUBARU OF AMERICA, INC.
Remove the transmission case cover.

Fig 4: Locating Transmission Case Cover Bolts
Courtesy of SUBARU OF AMERICA, INC.

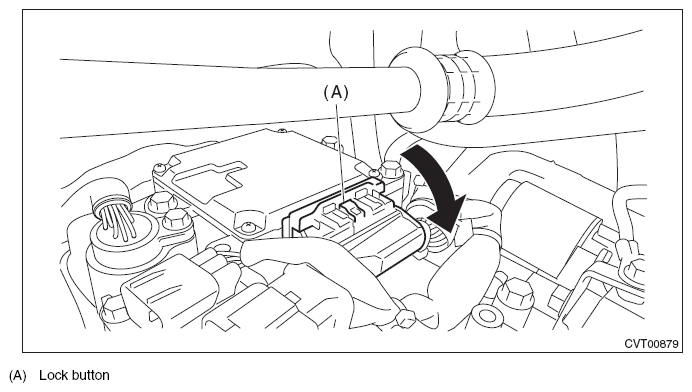

Move the lock lever in the arrow direction while pressing the lock button, and disconnect the connector.

Fig 5: Pressing Lock Button
Courtesy of SUBARU OF AMERICA, INC.
Remove the TCM.

Fig 6: Identifying Transfer Control Module
Courtesy of SUBARU OF AMERICA, INC.
