Transmission Control Module

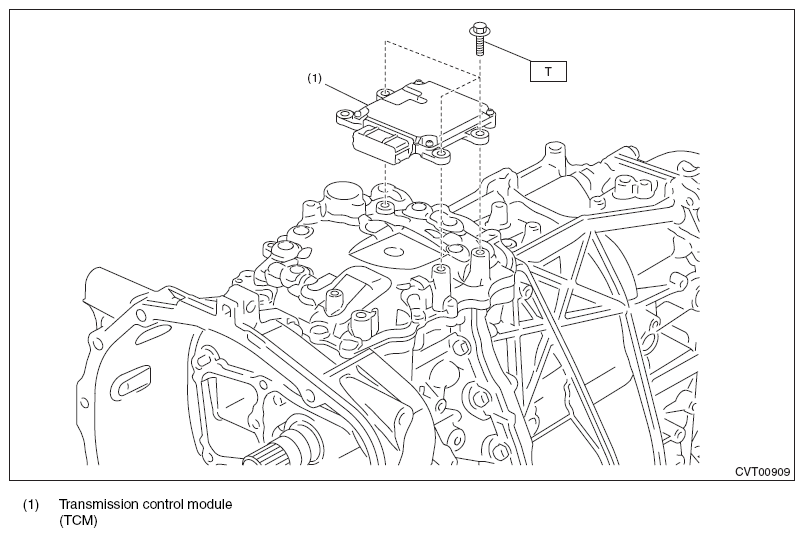

Fig 1: Exploded View Of Transmission Control Module With Torque Specification
G10274805Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 7 (0.7, 5.3)
