Oil Pan And Strainer

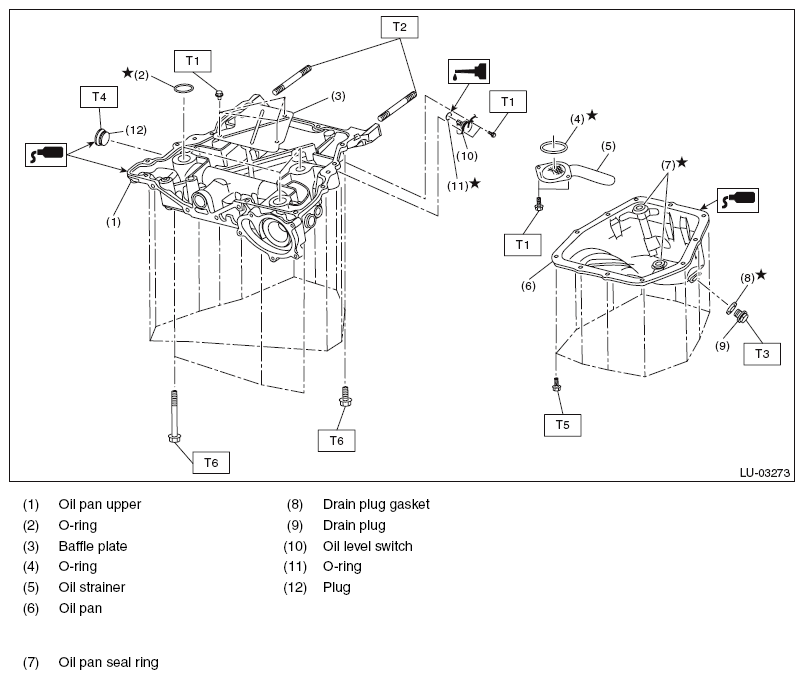

Fig 1: Exploded View Of Oil Pan And Strainer With Torque Specifications

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6.4 (0.7, 4.7)

T2: 10 (1.0, 7.4)

T3: 41.7 (4.3, 30.8)

T4: 90 (9.2, 66.4)

T5: <Ref. to  OIL PAN AND STRAINER  , INSTALLATION, Oil Pan and Strainer.>

T6: <Ref. to  OIL PAN UPPER  , INSTALLATION, Oil Pan and Strainer.>
