Air Cleaner Element: Installation

WARNING: This page is about a different variant/trim than selected.

Set the air cleaner case (rear) and air cleaner element to the air cleaner case (front).
CAUTION: Be sure to use SUBARU genuine air cleaner element depending on the engine type when replacing the air cleaner elements. Using other air cleaner element may affect the engine performance.
NOTE:
- Install the air cleaner element as shown in the figure.

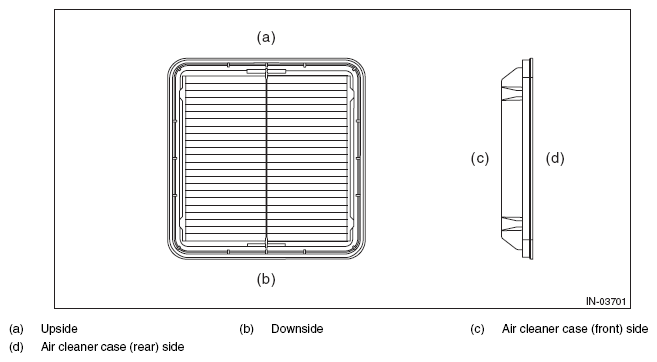

  Fig 1: Identifying Air Cleaner Element
  Courtesy of SUBARU OF AMERICA, INC.
- Check that there are no foreign objects in the air cleaner case.
- When setting the air cleaner case (rear), align the protrusion of the air cleaner case (rear) to the air cleaner case (front) to insert.

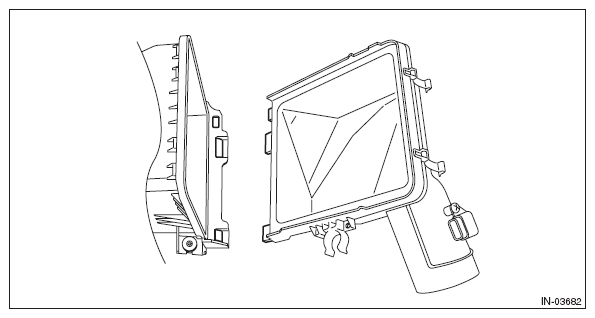

  Fig 2: Identifying Air Cleaner Case (Rear)
  Courtesy of SUBARU OF AMERICA, INC.
Install the clips (B) to the air cleaner case (front), then tighten the clamp (A) securing the air intake boot to the air cleaner case (rear).
Tightening torque:

3 N.m (0.3 kgf-m, 2.2 ft-lb)

Fig 3: Securing Air Intake Boot To Air Cleaner Case (Rear)
Courtesy of SUBARU OF AMERICA, INC.
Connect the connector (A) to the mass air flow and intake air temperature sensor, and install the clip (B) to the air cleaner case (rear).

Fig 4: Installing Clip To Air Cleaner Case (Rear)
Courtesy of SUBARU OF AMERICA, INC.
Connect the ground terminal to battery sensor. <Ref. to BATTERY , NOTE, Repair Contents.>
