Master Cylinder: Installation

Install the master cylinder to the vehicle body, and connect the clutch pipe and tank hose to the master cylinder.
Tightening torque:

T1: 15 N.m (1.5 kgf-m, 11.1 ft-lb)

T2: 18 N.m (1.8 kgf-m, 13.3 ft-lb)

Fig 1: Identifying Clutch Pipe And Tank Hose Mounting Bolts Of Master Cylinder
Courtesy of SUBARU OF AMERICA, INC.
Connect the push rod of the master cylinder to the clutch pedal, and install the clevis pin and snap pin.
CAUTION: Always use a new clevis pin.

NOTE: Apply grease to the clevis pin.

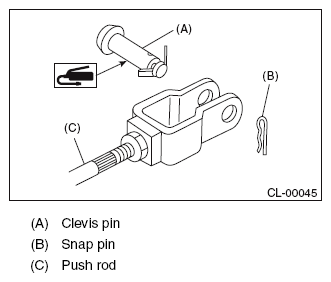

Fig 2: Identifying Clevis, Snap Pin And Push Rod
Courtesy of SUBARU OF AMERICA, INC.
Install the cover assembly - instrument panel LWR driver. < Ref. to INSTALLATION , Instrument Panel Lower Cover. >
After bleeding air from the clutch system, ensure that the clutch operates properly. < Ref. to CLUTCH FLUID AIR BLEEDING . >
Install the air intake boot assembly. < Ref. to INSTALLATION , Air Intake Boot. >
