System Block Diagram

Main signals used between stereo camera and relevant Control Module

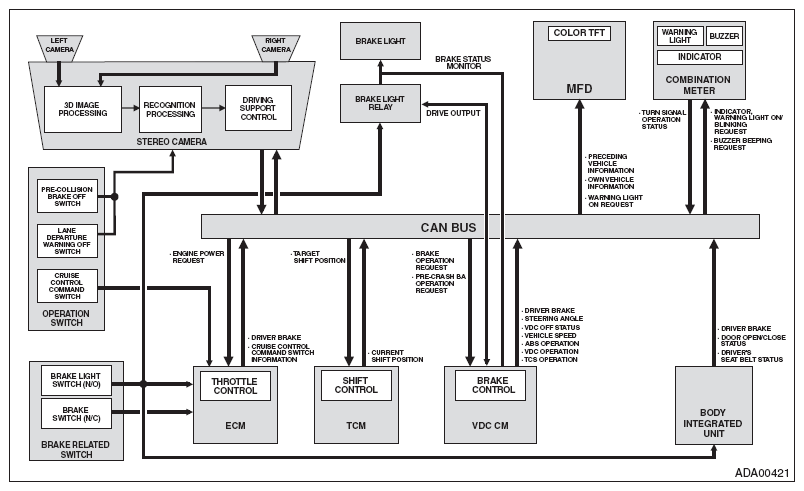

Fig 1: System Block Diagram

G09485327

Courtesy of SUBARU OF AMERICA, INC.
