Transfer Clutch: Installation

  1. Install the thrust bearing.
    NOTE: Make sure to install in the right direction.

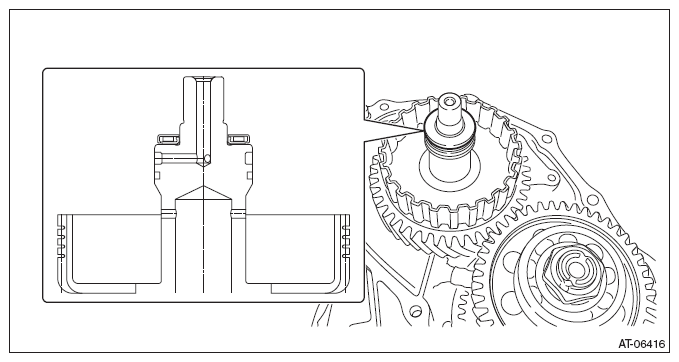

    Fig 1: Identifying Thrust Bearing Position
    G08317902Courtesy of SUBARU OF AMERICA, INC.
  2. Install the transfer clutch assembly.
    Fig 2: Identifying Transfer Clutch Assembly
    G08317898Courtesy of SUBARU OF AMERICA, INC.
  3. Select the transfer driven gear shim. < Ref. to ADJUSTMENT , Transfer Clutch. >
  4. Attach the selected transfer driven gear shim to extension case with vaseline.
  5. Remove the transfer clutch assembly.
  6. Install the seal ring to the transfer clutch assembly.
    NOTE:
    • Use a new seal ring.
    • When installing the seal ring, do not expand the seal ring too much.
    • Apply CVTF to the seal rings.
    Fig 3: Locating Transfer Clutch Assembly Seal Rings
    G08317900Courtesy of SUBARU OF AMERICA, INC.
  7. Install the seal ring to the transfer driven gear assembly.
    NOTE:
    • Use a new seal ring.
    • When installing the seal ring, do not expand the seal ring too much.
    • Apply CVTF to the seal rings.
    Fig 4: Locating Transfer Driven Gear Assembly Seal Ring
    G08317901Courtesy of SUBARU OF AMERICA, INC.
  8. Install the transfer clutch assembly.
  9. Install the extension case. < Ref. to INSTALLATION , Extension Case. >
  10. Install the transmission assembly to the vehicle. < Ref. to INSTALLATION , Automatic Transmission Assembly. >
