Control Valve Body: Removal

CAUTION:

Directly after the vehicle has been running or the engine has been idling for a long time, the CVTF is hot. Be careful not to burn yourself.
Be careful not to spill CVTF on the exhaust pipe to prevent it from emitting smoke or causing a fire. If the CVTF adheres, wipe it off completely.
Always clean the engine compartment before removal.

NOTE: The control valve body is replaced as an assembly only, because it is a non-disassembly part.

Disconnect the ground cable from battery.
Remove the air intake boot assembly. Ref. to REMOVAL .
Disconnect the following connectors.
- Transmission harness connectors
- Inhibitor harness connector
- Transmission radio ground terminal

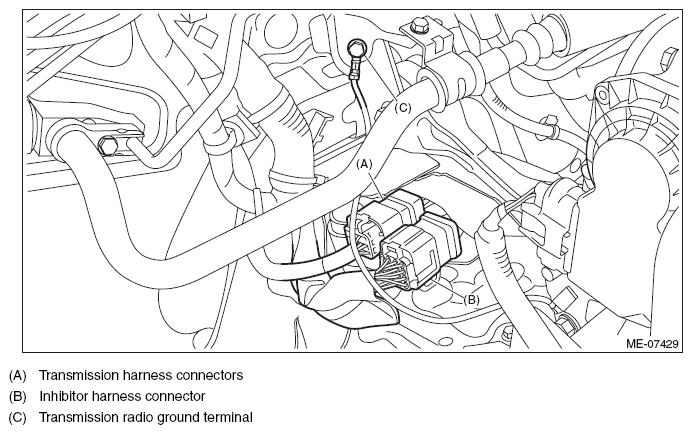

  Fig 1: Identifying Transmission, Inhibitor Harness Connector And Transmission Radio Ground Terminal
  Courtesy of SUBARU OF AMERICA, INC.
Remove the pitching stopper.

Fig 2: Locating Pitching Stopper Bolts And Nut
Courtesy of SUBARU OF AMERICA, INC.
Remove the air breather hose from the pitching stopper bracket, and then remove the pitching stopper bracket and transmission radio ground cord.

Fig 3: Locating Pitching Stopper Bracket Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove the transmission case cover.

Fig 4: Locating Transmission Case Cover Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove the transmission harness stay and ground terminal.

Fig 5: Locating Transmission Harness Stay And Ground Terminal Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove the transmission harness connector from the harness stay.
Remove the throttle body, and move it aside so that it will not interfere with the removal of the control valve. < Ref. to REMOVAL , Throttle Body. >
NOTE: Do not remove the preheater hose.
Clean the transmission exterior.

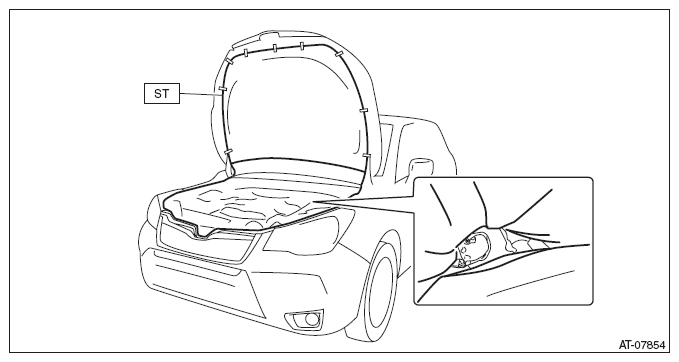

Fix the ST with tape, and set the ST to the vehicle.
NOTE: When replacing the control valve body, the sheet is included in the control valve body for repairs.

ST 18761AA010 SHEET SPECIAL TOOL

Fig 6: Identifying Control Valve Body Sheet
Courtesy of SUBARU OF AMERICA, INC.
Remove the valve cover and gasket.

Fig 7: Identifying Transmission Harness Connector
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the harness connector from the control valve body.
Remove the transmission harness from the valve cover.

Fig 8: Locating Transmission Harness Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove the O-ring from the transmission harness.

Fig 9: Locating Transmission Harness O-Ring
Courtesy of SUBARU OF AMERICA, INC.
Remove the control valve body.

Fig 10: Locating Control Valve Body Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove the O-ring from the transmission.

Fig 11: Identifying Transmission O-Rings
Courtesy of SUBARU OF AMERICA, INC.
