Wheel Alignment: Inspection: Camber

  1. Place the front wheel on the turning radius gauge.
    NOTE: Make sure the ground contact surfaces of the front and rear wheels are at the same height.
  2. Set the adapter into the center of wheel, and then set the wheel alignment gauge.

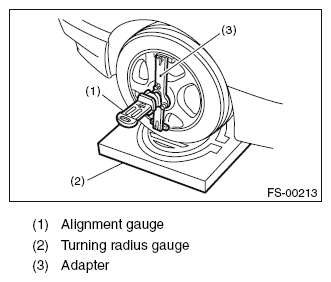

    Fig 1: Identifying Alignment Gauge, Turning Radius Gauge And Adapter
    G09482899Courtesy of SUBARU OF AMERICA, INC.
  3. Measure the camber angle in accordance with the operation manual for wheel alignment gauge.
    Tire size Camber (difference between RH and LH 35' or less)
    P225/60R17
    P225/55R18    		 -0°00'±0°30'
